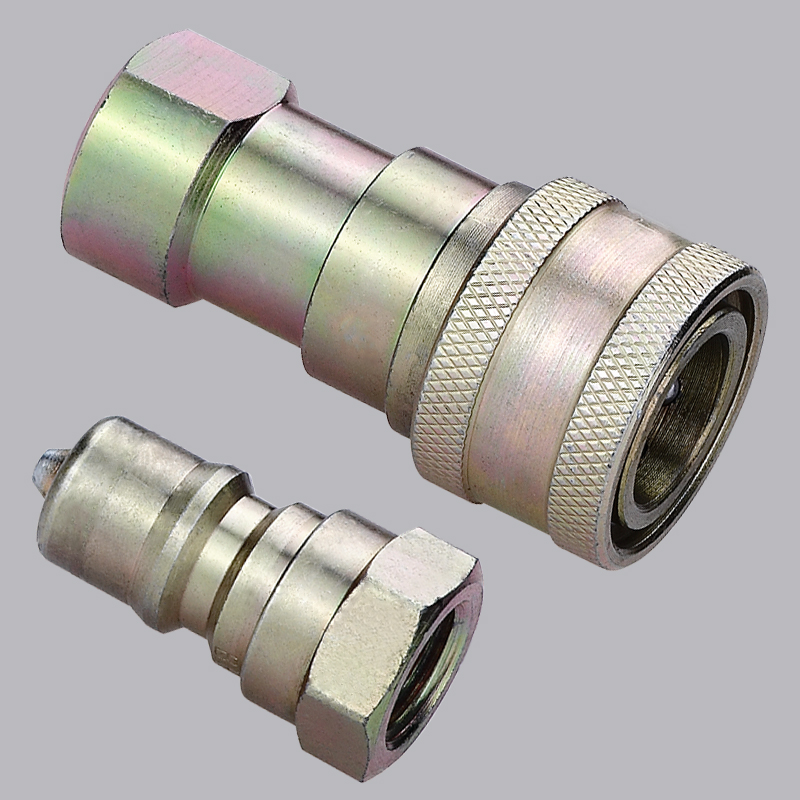

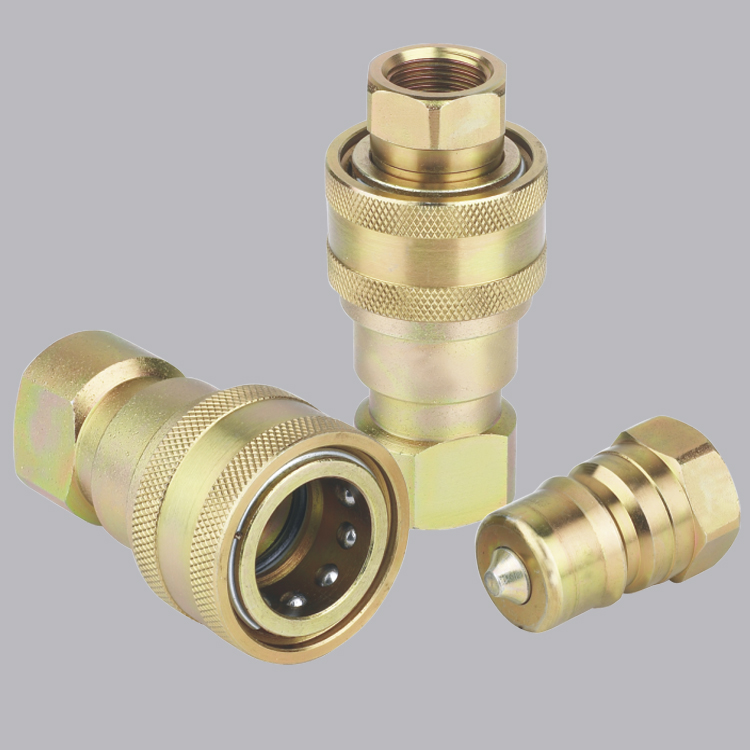

ISO7241-B S2 Close Type Hydraulic quick disconnect hose fittings(Steel)

5 0 Reviews
ISO7241-B S2 Close Type Hydraulic quick disconnect hose fittings(Steel) are used in a wide range of hydraulic applications including construction equipments, manufacturing machineries, and in-plant systems. They can be found anywhere the fluid transfer lines which need to be connected and disconnected for operation or maintenance of equipments.

  • RH

  • S2

  • Material: Carbon Steel
  • Surface treatment: White zinc or Color zinc plated
  • Thread: BSPT(R), BSPP(G), NPT, Metric
  • Standard Seal: NBR, On request EPDM,VITION and FKM seals
Model:
S6-02 S6-03 S6-04 S6-06 S6-08 S6-10 S6-12 S6-16
Quantity:
Send Inquiry Add to Basket

sharethis sharing button
ISO7241-B S2 Close Type Hydraulic quick disconnect hose fittings(Steel)

Body Size (In) 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Rated Pressure (PSI) 5000 4000 4000 3000 3000 3000 2000 2000
Rated Flow (GPM) 3 6 12 28 50 88 220 240
Temperature Range (std seals) -20℃ to + 80℃
Standard seal material
NBR

S2 Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.S1 series conforms to the standard of ISO7241-B.
7.Compatible with PARKER 6600 Series,FASTER ANV Series,AEROQUIP 5600 Series and HANSEN HA 15000 Series.

Demension:

Part No  ISO     Thread   L         L1       L2       L3      D1      D2      CH1    CH2
S2-02  6.3  1/4 72 58  36  22.5  28.5  14.2  19 19
S2-03  10  3/8  80.5  65  40  25  35  19.1  24 24
S2-04  12.5  1/2  96  77  46.5  28  44.5  23.5  28 28
S2-06  20  3/4  112  92  56  36 54  31.4  38 38
S2-08  25  1  125 103  63 45 63.5 37.8  41 41
