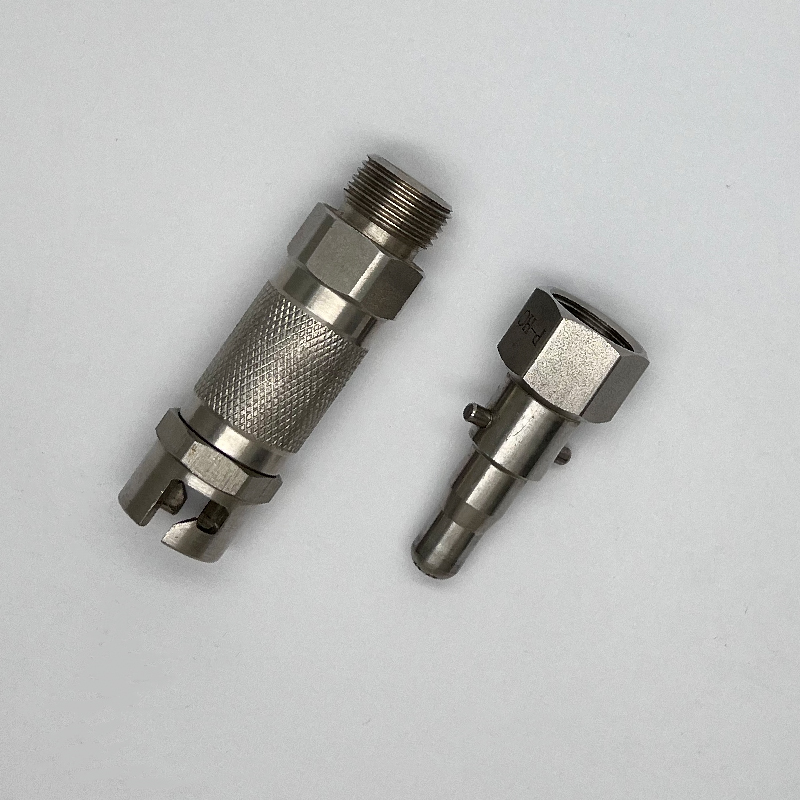

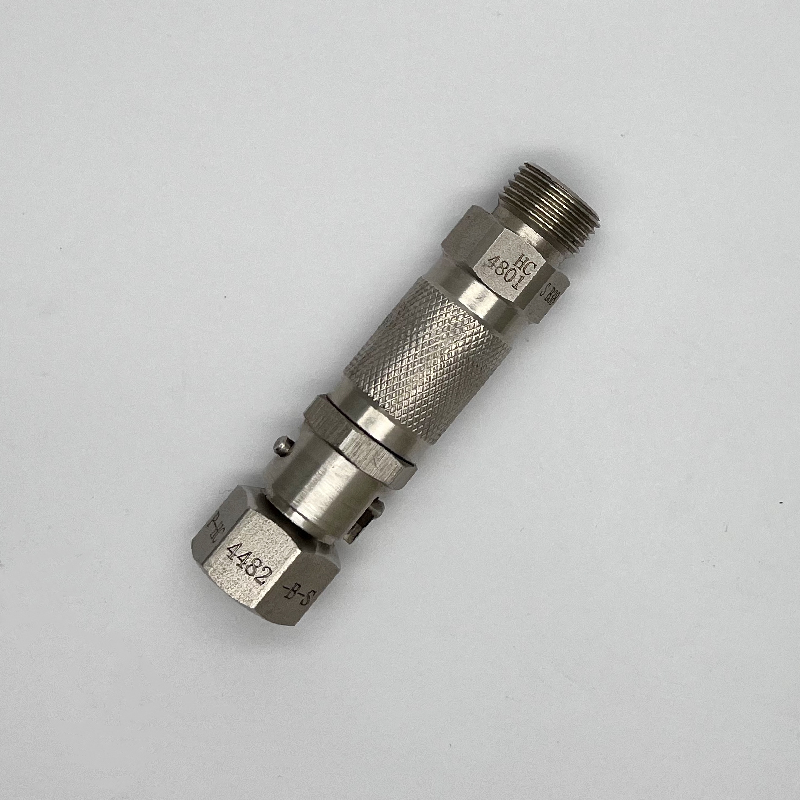

03-005 Plug txuas rau xim thiab lacquer ntawm lub hauv paus ntawm hluavtaws cob, nitrocellulose thiab dej

Nqe lus piav qhia:

Self-sealing coupling nyob rau hauv cov khoom tsim, yooj yim los ntxuav nrog tus kheej-kaw pob valve thiab bayonet locking.

Daim ntawv thov:

Rau cov khoom siv hluavtaws, nitrocellulose thiab dej lacquer hauv khw muag xim, xim, lacquer thiab hnyav / thinner, automotive kev lag luam, rooj tog kev lag luam, kev lag luam tsim, xuas tes ua thiab kho cov khw

Technical data:

Nominal bore: 5 hli

Ua haujlwm siab: max.static 140 bar / 2,030 psi *

Cv-tus nqi: 1.03

Khoom siv:

     1, coupling vaj tse: steel, chem.npib tsib xee plated;

     2, kawg plug: tooj dag, chem.npib tsib xee plated;

     3, valve pob: stainless hlau 1.4034;
     4, valve caij nplooj ntoos hlav: stainless hlau 1.4310;

     5, valve bearingand tsev foob: PA;
     6, foob kev them nyiaj yug: tooj dag, chem.npib tsib xee plated;

     7, los ntawm hom adaptor: steel, chem.npib tsib xee plated.

Version: Dawb ntawm enamel ntws cuam tshuam cov khoom, ntawm kev thov kuj tsis muaj roj thiab roj

Tshwj xeeb tsim:

Nrog rau lwm qhov kawg kev sib txuas, hauv stainless hlau, raws li kev kub siab version mus txog max.static 200 bar, (2.900 psi).* *

Siab nyob ntawm qhov kev sib txuas xaiv
