RH
2WC, 2WD
| Umubare: | |
|---|---|

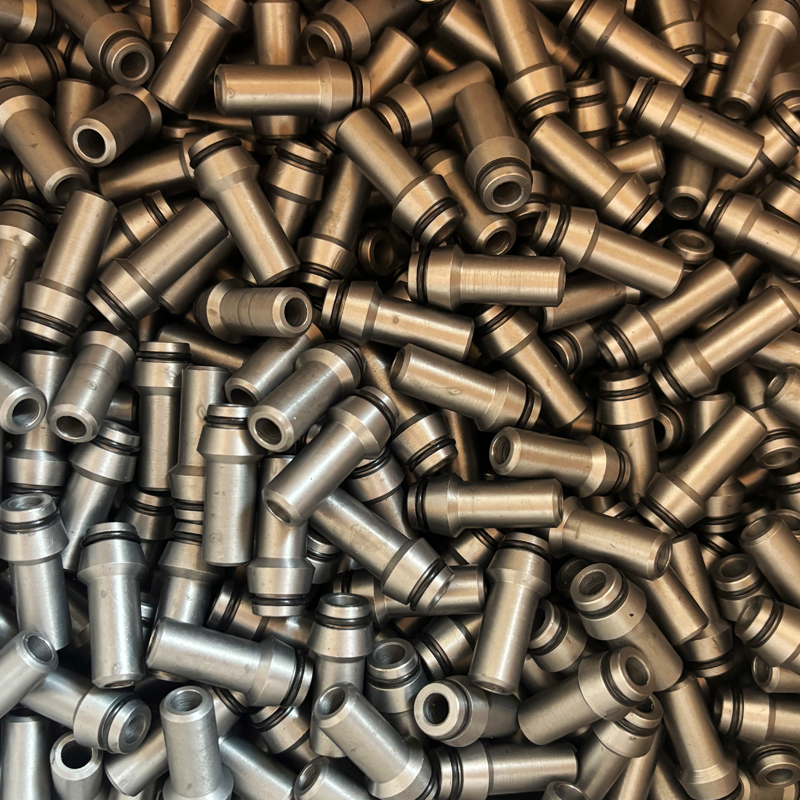

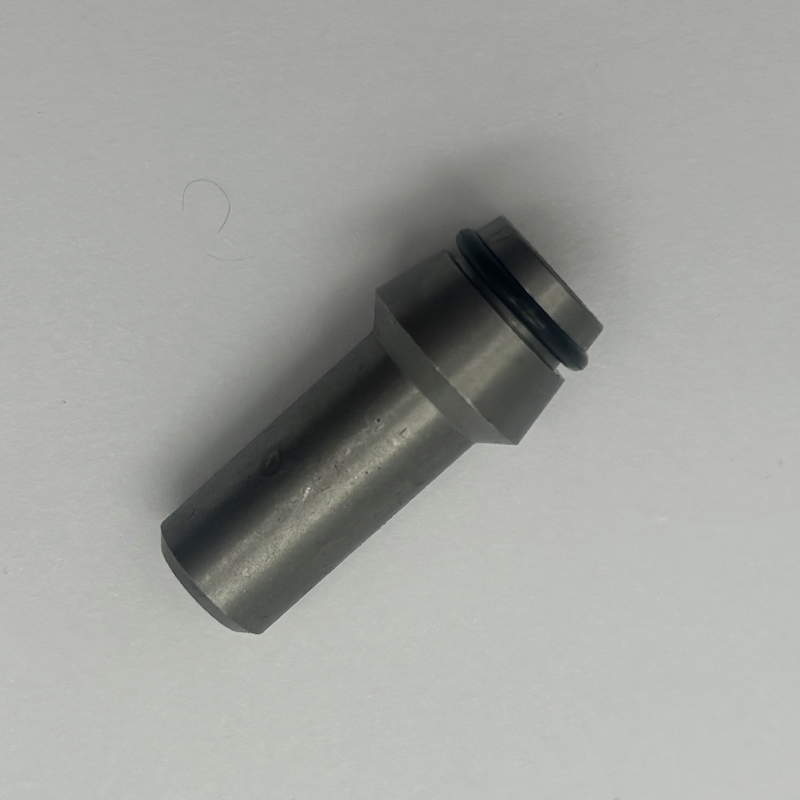

DIN 24 Impamyabumenyi Bite Ubwoko bwa Tube Bikwiranye 2wc 2WD WELDING FITTINGS DIN Weld nipple adapters
| IGICE CYA OYA | GATATU | TUBE | DIMENSIONS | MPa | |||
| E. | D1 | A. | L1 | S1 | S2 | ||
| 2WC-6X1.5 | M12X1.5 | 6X1.5 | 30 | 2.5 | 6 | 14 | 25 L. |
| 2WC-8X2.0 | M14X1.5 | 8X2.0 | 30 | 4 | 8 | 17 | |
| 2WC-10X2.0 | M16X1.5 | 10X2.0 | 31 | 6 | 10 | 19 | |
| 2WC-12X2.0 | M18X1.5 | 12X2.0 | 31 | 7.5 | 12 | 22 | |
| 2WC-15X2.0 | M22X1.5 | 15X2.0 | 35 | 10 | 15 | 27 | |
| 2WC-18X2.0 | M26X1.5 | 18X2.0 | 35 | 13 | 18 | 32 | |
| 2WC-22X2.0 | M30X2 | 22X2.0 | 35 | 17 | 22 | 36 | 16L |
| 2WC-28X2.5 | M36X2 | 28X2.5 | 41 | 23 | 28 | 41 | |
| 2WC-35X3.0 | M45X2 | 35X3.0 | 48 | 29 | 35 | 50 | |
| 2WC-42X3.0 | M52X2 | 42X3.0 | 50.5 | 36 | 42 | 60 | |
| 2WD-6X1.5 | M14X1.5 | 6X1.5 | 28.5 | 2.5 | 6 | 17 | 63 S. |
| 2WD-8X2.0 | M16X1.5 | 8X2.0 | 29 | 4 | 8 | 19 | |
| 2WD-10X1.0 | M18X1.5 | 10X1.0 | 32 | 6.5 | 10 | 22 | |
| 2WD-10X1.5 | M18X1.5 | 10X1.5 | 32 | 6.5 | 10 | 22 | |
| 2WD-10X2.0 | M18X1.5 | 10X2.0 | 32 | 6 | 10 | 22 | |
| 2WD-12X1.5 | M20X1.5 | 12X1.5 | 32.5 | 8 | 12 | 27 | |
| 2WD-12X2.0 | M20X1.5 | 12X2.0 | 32.5 | 8 | 12 | 27 | |
| 2WD-12X2.5 | M20X1.5 | 12X2.5 | 32.5 | 7 | 12 | 27 | |
| 2WD-16X1.5 | M24X1.5 | 16X1.5 | 39 | 13 | 16 | 30 | 40 S. |
| 2WD-16X2.0 | M24X1.5 | 16X2.0 | 39 | 12 | 16 | 30 | |
| 2WD-16X2.5 | M24X1.5 | 16X2.5 | 39 | 11 | 16 | 30 | |
| 2WD-16X3.0 | M24X1.5 | 16X3.0 | 39 | 10 | 16 | 30 | |
| 2WD-20X2.0 | M30X2 | 20X2.0 | 43 | 15 | 20 | 36 | |
| 2WD-20X2.5 | M30X2 | 20X2.5 | 43 | 15 | 20 | 36 | |
| 2WD-20X3.0 | M30X2 | 20X3.0 | 43 | 14 | 20 | 36 | |
| 2WD-20X4.0 | M30X2 | 20X4.0 | 43 | 12 | 20 | 36 | |
| 2WD-25X2.5 | M36X2 | 25X2.5 | 50 | 20 | 25 | 46 | |
| 2WD-25X3.0 | M36X2 | 25X3.0 | 50 | 19 | 25 | 46 | |
| 2WD-25X4.0 | M36X2 | 25X4.0 | 50 | 17 | 25 | 46 | |
| 2WD-25X5.0 | M36X2 | 25X5.0 | 50 | 15 | 25 | 46 | |
| 2WD-30X3.0 | M42X2 | 30X3.0 | 52 | 24 | 30 | 50 | 25 S. |
| 2WD-30X4.0 | M42X2 | 30X4.0 | 52 | 22 | 30 | 50 | |
| 2WD-30X5.0 | M42X2 | 30X5.0 | 52 | 20 | 30 | 50 | |
| 2WD-30X6.0 | M42X2 | 30X6.0 | 52 | 18 | 30 | 50 | |
| 2WD-38X4.0 | M52X2 | 38X4.0 | 56.5 | 30 | 38 | 60 | |
| 2WD-38X5.0 | M52X2 | 38X5.0 | 56.5 | 28 | 38 | 60 | |
| 2WD-38X6.0 | M52X2 | 38X6.0 | 56.5 | 26 | 38 | 60 | |
| 2WD-38X7.0 | M52X2 | 38X7.0 | 56.5 | 24 | 38 | 60 | |
