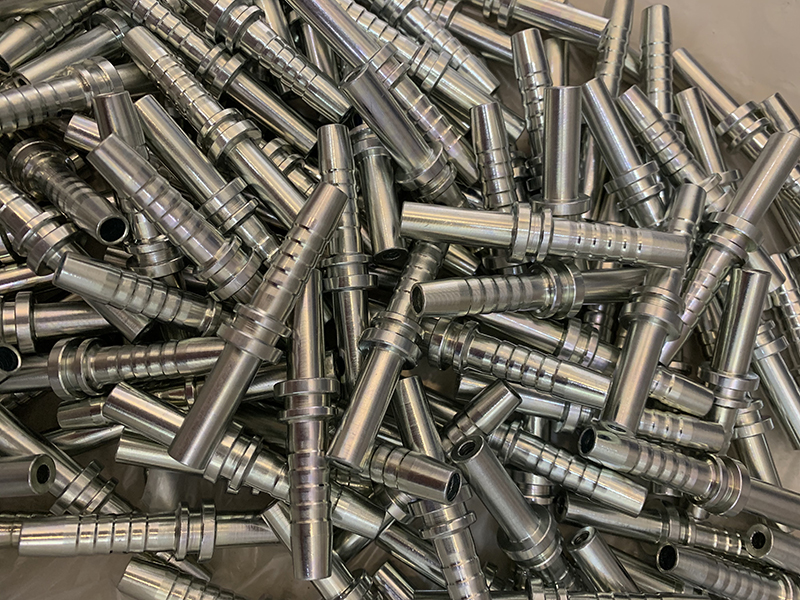

50011 i xitirhisiwa xa DIN 2353 xa standpipe. Yi hlanganisa ti metric steel tubing na hose ya hydraulic. Xiphemu xa tube xi pfariwa hi 24° cone na ring yo tsema. Xiphemu xa hose xi khoma hi nsinya wa mitwa.
Fitting yi endla mintirho yinharhu: khoma ring yo tsema eka chubu, yi pfalela eka cone, kutani u khoma hose. Ruihua Hardware yi endla michini ya 50011 kusuka eka nsimbi ya khaboni ya C45 naswona yi yi plate hi zinc-nickel. Batch yin’wana na yin’wana yi kamberiwa ku vona loko thread yi pakanisa xikan’we na cone finish loko yinga se paka.
Profayile yo kongoma. Hose yi tshama yi ringanile na ribuwa. Ndzhwalo wutsongo wa le tlhelo eka xihlanganisi, vutomi byo leha bya hose.
24° xisirhelelo xa khoni. Ku hlangana ka nsimbi na nsimbi. Ku hava ti O-rings leti nga ta tsandzeka.
Ku endliwe hi muchini, ku nga ri ku hoxiwa. Cone yi tsemiwa eka lathe ya CNC naswona yi pholishiwa kuya eka Ra 0.8. Ku hava ti micro-grooves, ku hava ku rila ehansi ka pressure cycling.
Ti barbs leti rhendzelekaka. Ti serrations ti khoma xifunengeto xa hose handle ko xi tsema.
Tiseti leti ringanisiweke. Standpipe, ferrule, nati, na xikepe xo tsema ring swin’we. Vahlanganisi a va si tshama va hlanganisa swiphemu swo vevuka ni leswi tikaka.
Tube 6–42 mm, ya hose leyi lukiweke
Ntshikelelo wo tirha kuya eka 315 bar
Leswi tolovelekeke: 50011-06-03, 50011-12-08, 50011-18-10
Yi tirhisiwa eka switirhisiwa swa tiselfoni na indasitiri hi ku angarhela
Same tube range, marhangu yo tiya, ti barbs letikulu
Ntshikelelo wo tirha kuya eka 630 bar
Leswi tolovelekeke: 50011-20-12, 50011-30-20, 50011-38-20
Yi tirhisiwa eka migodi, nsimu ya oyili, ku aka lokukulu
Ti standpipe to tika ta series ti rhwala groove ekusuhi na hex. U nga swi hambanisa endzhaku ka loko swi hlengeletiwile.
Nchumu |
Nkoka |
|---|---|
Miri |
Nsimbi ya khaboni C45, leyi kokiwaka hi xirhami kumbe leyi rhendzelekaka hi ku hisa |
Ku pfaleriwa ka swiphepherhele |
Zn-Ni alloy, 8–12 μm, 240+ h ku fafazela munyu (ASTM B117) . |
Ndlela |
Stainless steel 316L ya ntirho wa le lwandle kumbe wa tikhemikhali |
Mahiselo |
−40 °C kuya eka +120 °C (NBR), −40 °C kuya eka +150 °C (FKM) . |
Ntshikelelo |
Nxaxamelo wa ku vonakala ku ya eka 315 bar; nxaxamelo wo tika ku ya eka 630 bar (static, safety factor 4:1) . |
Xiyimo |
DIN 2353, xihlanganisi xa ISO 8434-1 |
Nomboro ya Xiphemu |
OD ya chubu (mm) . |
ID ya hose (mm) . |
Baleka |
A (mm) . |
C (mm) . |
|---|---|---|---|---|---|
50011-06-03 |
6 |
5 |
03 |
28.5 |
22 |
50011-06-04 |
6 |
6 |
04 |
29.0 |
22 |
50011-10-05 |
10 |
8 |
05 |
31.0 |
23 |
50011-10-06 |
10 |
10 |
06 |
32.0 |
23 |
50011-12-06 |
12 |
10 |
06 |
32.5 |
23 |
50011-12-08 |
12 |
12 |
08 |
33.0 |
23 |
50011-15-06 |
15 |
10 |
06 |
35.5 |
25 |
50011-15-08 |
15 |
12 |
08 |
35.5 |
25 |
50011-18-08 |
18 |
12 |
08 |
36.5 |
26 |
50011-18-10 |
18 |
16 |
10 |
41.0 |
26 |
50011-22-10 |
22 |
16 |
10 |
44.0 |
28 |
50011-22-12 |
22 |
20 |
12 |
44.0 |
28 |
50011-22-16 |
22 |
25 |
16 |
46.0 |
28 |
50011-28-16 |
28 |
25 |
16 |
47.0 |
30 |
50011-35-20 |
35 |
32 |
20 |
56.0 |
36 |
50011-42-24 |
42 |
40 |
24 |
62.0 |
40 |
Nomboro ya Xiphemu |
OD ya chubu (mm) . |
ID ya hose (mm) . |
Baleka |
A (mm) . |
C (mm) . |
|---|---|---|---|---|---|
50011-08-04 |
8 |
6 |
04 |
31.0 |
24 |
50011-08-05 |
8 |
8 |
05 |
33.0 |
24 |
50011-08-06 |
8 |
10 |
06 |
33.0 |
24 |
50011-10-04 |
10 |
6 |
04 |
33.0 |
26 |
50011-12-04 |
12 |
6 |
04 |
34.5 |
26 |
50011-12-05 |
12 |
8 |
05 |
35.5 |
26 |
50011-14-06 |
14 |
10 |
06 |
39.5 |
29 |
50011-14-08 |
14 |
12 |
08 |
40.0 |
29 |
50011-14-12 |
14 |
20 |
12 |
45.5 |
29 |
50011-16-08 |
16 |
12 |
08 |
40.5 |
30 |
50011-16-10 |
16 |
16 |
10 |
45.5 |
30 |
50011-20-10 |
20 |
16 |
10 |
52.0 |
36 |
50011-20-12 |
20 |
20 |
12 |
52.5 |
36 |
50011-25-12 |
25 |
20 |
12 |
56.0 |
40 |
50011-25-16 |
25 |
25 |
16 |
57.0 |
40 |
50011-30-16 |
30 |
25 |
16 |
63.0 |
44 |
50011-30-20 |
30 |
32 |
20 |
64.0 |
44 |
50011-38-16 |
38 |
25 |
16 |
69.0 |
50 |
50011-38-20 |
38 |
32 |
20 |
70.0 |
50 |
50011-20-12 nxaxamelo wo tika – chubu ra 20 mm, hose ya DN20
Switirhisiwa swo cela na swichayachayani swa mavhilwa
Titeretere na switshoveri
Michini yo vumba hi ku chela swilo
Michini yo kandziyisa ya hayidiroliki
Nsimu ya oyili na switirhisiwa swa migodi
Muchini wun’wana na wun’wana lowungana metric tubing na hydraulic hose leyi lavaka ku cinca loku kongomeke, lokunga vupfangiki.
Tsema xikwere xa chubu kutani u deburr matlhelo hamambirhi. Burr yi susumeta ring yo tsema ehandle ka le xikarhi naswona yi endla leswaku ku vupfa.
Rhanga hi ku rhetela nati, kutani ring yo tsema leyi nga ni tlhelo ro tsema ri kongoma emakumu ka chubu.
Tola cone na ring yo tsema hi assembly paste. Ku hava mafurha lama nga ni swiphemuphemu leswi tiyeke.
Tiyisisa nati hi voko, yi fungha hi peni yo penda, kutani u jika 1.5 wa ku jika (light series) kumbe 1.5–2 wa ku jika (heavy series, yi titshege hi vukulu).
Susa standpipe hi ku helela eka hose. Crimp na ferrule leyi xaxametiweke eka tafula ra nomboro ya xiphemu. Unga hlanganisi ti ferrules to olova na ti standpipes to tika.
50011 i standpipe yo kongoma ya ti hose leti lukiweke. 50012 yina barb profile yo leha naswona yitirhisa ferrule yohambana eka spiral hose. Tirhisa 50011 eka hose leyi lukiweke hi waya wun’we kumbe timbirhi. Tirhisa 50012 eka hose ya spiral ya mune kumbe tsevu wa tintambhu.
No. Tube OD ya fana, kambe ti heavy series cutting rings ti tsindziyerile naswona ti nuts tikulu. Swiphemu leswi pfanganisiweke swi ta vupfa. Oda sete leyi heleleke eka Ruihua Hardware: standpipe, ferrule, nati, na ring yo tsema.
Hi phakela standpipe na ferrule tani hi swiphemu leswi ntshunxekeke. Hi tlhela hi nyika data ya crimp, die set, crimp diameter yo hetelela, na matimba yo susumeta ehandle, eka brand ya wena ya hose na press. Eka tinhlengeletano leti hetiweke, Ruihua Hardware yi tirha na mavhengele ya tihoyisi lama tiyisisiweke eYuropa na Asia.
Standard Zn-Ni yi hundza 240 wa tiawara ta neutral salt spray hi ASTM B117 handle ka red rust. Hi nga yi engetela ku ya eka tiawara ta 480 kutani hi cincela eka Zn-Ni ya ntima. Kuva u hlangana na lwandle nkarhi hinkwawo, hlawula 316L stainless steel.
Ina. Ruihua Hardware yi stoka ti kits letingana 10 wa swiphemu xin’wana na xin’wana xa 50011-06-04, 50011-10-06, 50011-12-08, na 50011-20-12, na ti nuts na swirhendzevutani leswi fambelanaka. Tihlanganise na hina ku kuma fomo ya xikombelo xa xikombiso.
Rhumela xibalo xa wena xa switirhisiwa kumbe nxaxamelo wa nhlengeletano ya tihoyisi. Hi cross-reference tinomboro ta wena ta swiphemu, hi tiyisisa ku fambisana ka ferrule, naswona hi quote ku nga si hela tiawara ta 24.
