RUIHUA high quality carbon steel Survey Nails SN

5 0 Reviews
We have a wide range of survey nails and a variety of shapes and sizes, our nail stock can satisfy virtually any requirement your project calls for. We are a professional manufacturer of hardware, here introduce our products of survey / marking nails.

  • RH

  • SN

  • Material: A3 Carbon Steel
  • ØD head: 20mm
  • Ød body: 8.8mm
  • Surface treatment: White zinc or Color zinc plated
  • Note: Special size and requirement can be accepted
Model:
SN050 SN070 SN080 SN100 SN030
sharethis sharing button

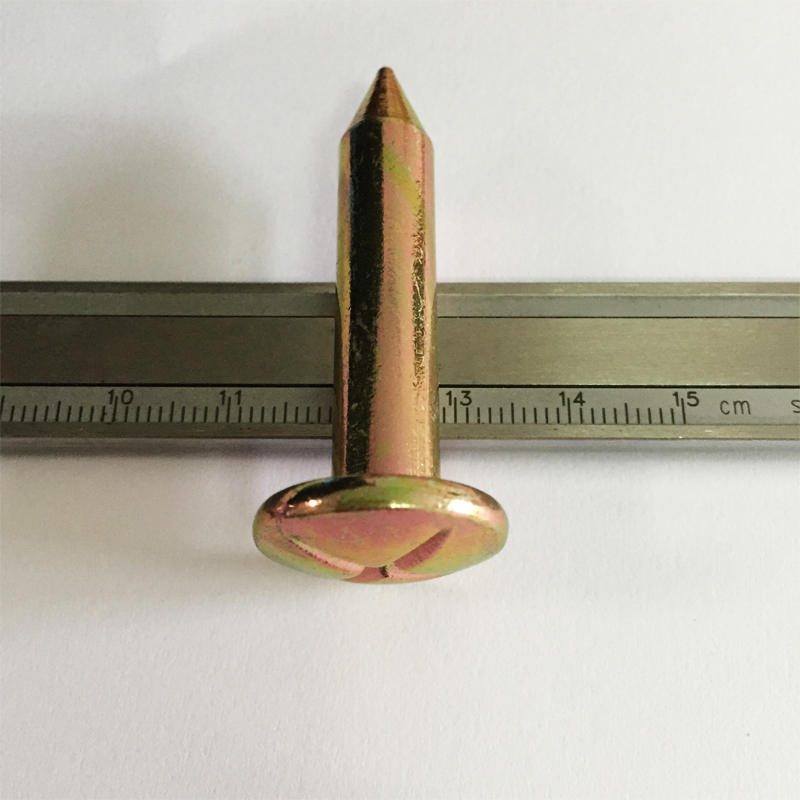

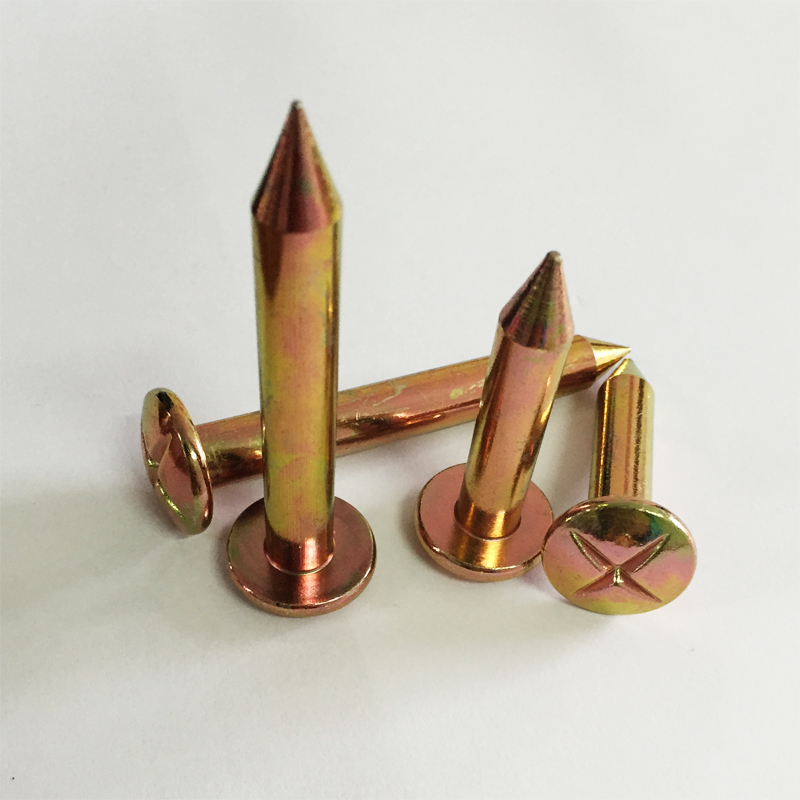

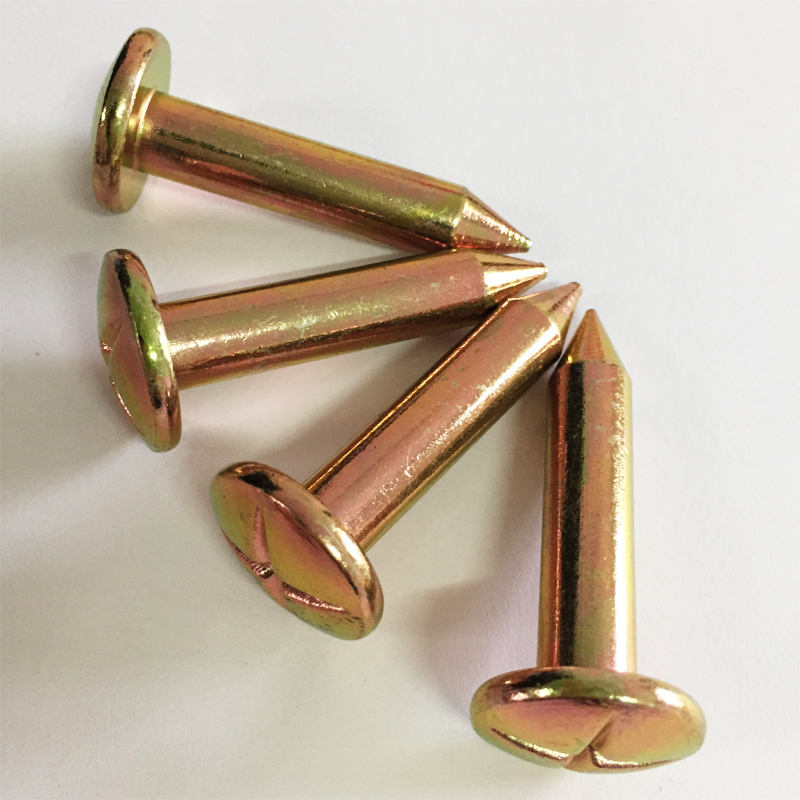

Survey Nails

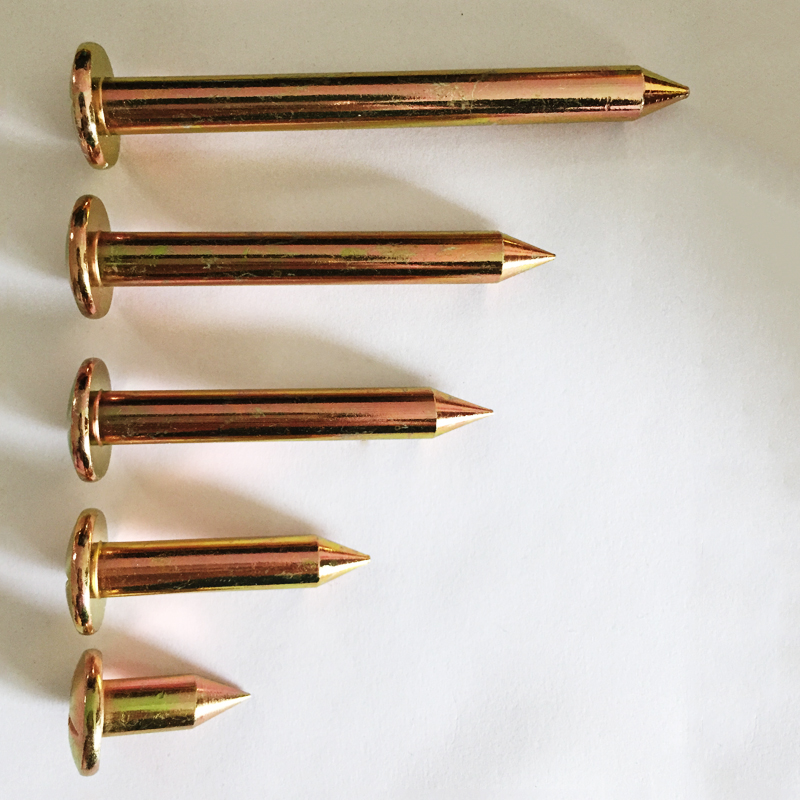

Available in five sizes 30mm, 50mm, 70mm, 80mm and 100mm the latter being type 1 permanent ground marker for dense very stable paved surfaces.

Large 20mm diameter head has a central monitoring recess which can be used to accurately receive a plumb-bob or prism pole.

The precise marks on the head allow easy alignment through an instrument's optical plumbing device.

Should additional washers be required then there are 30mm diameter & 50mm diameter available.



Item SN030 SN050 SN070 SN080 SN100
Material A3 Carbon Steel
ØD head 20mm
Ød body 8.8mm
Length 30mm 50mm 70mm 80mm 100mm
Unit Weight 18g 26g 36g 40g 50g
Surface treatment White zinc or Color zinc plated
Note Special size and requirement can be accepted

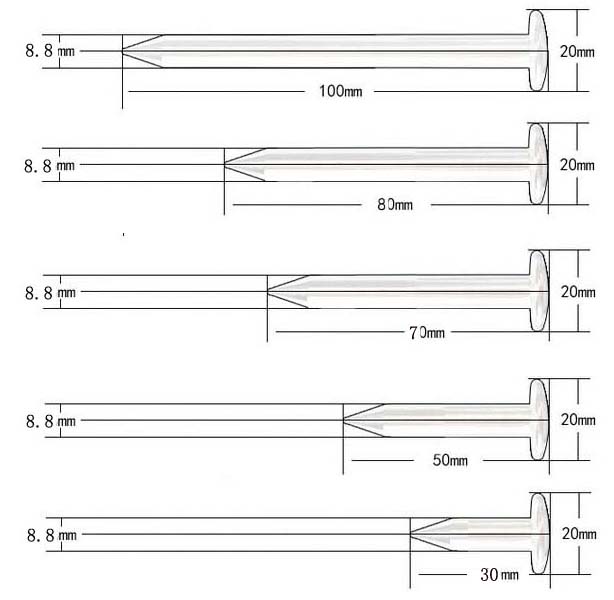

simple drawing of steel nails.jpg
