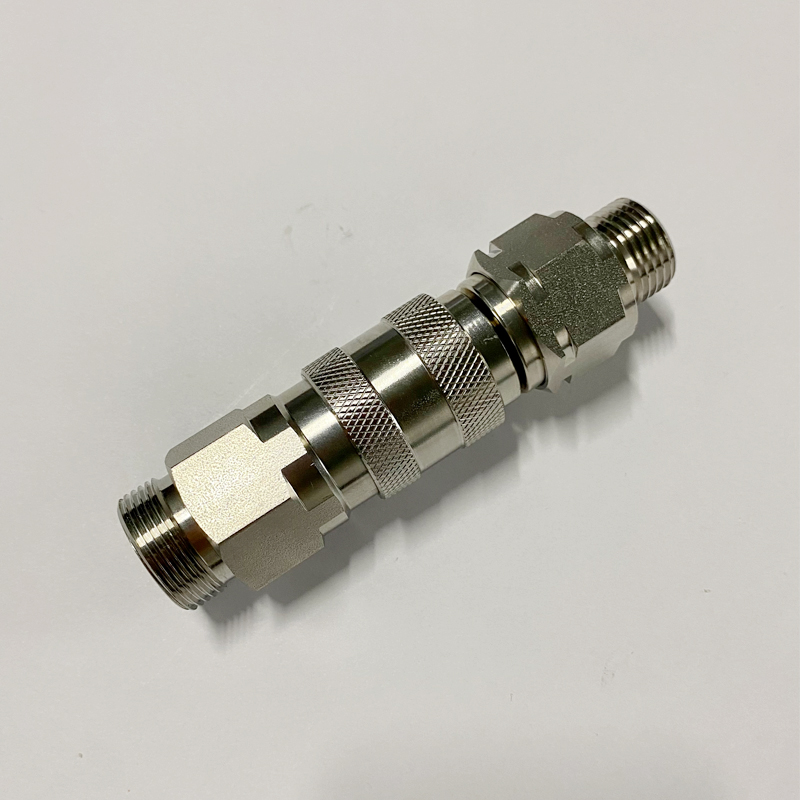

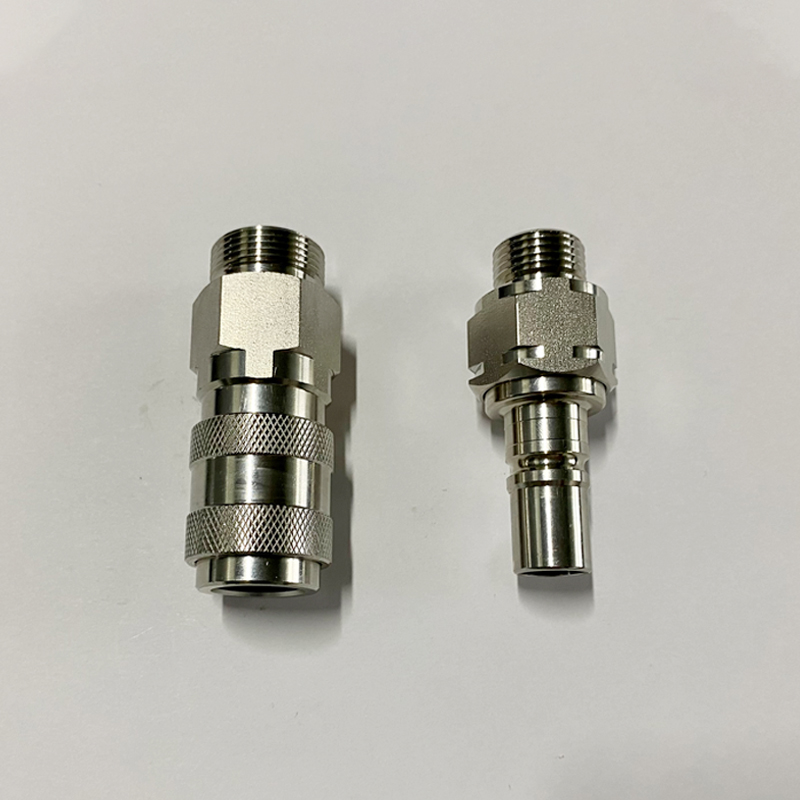

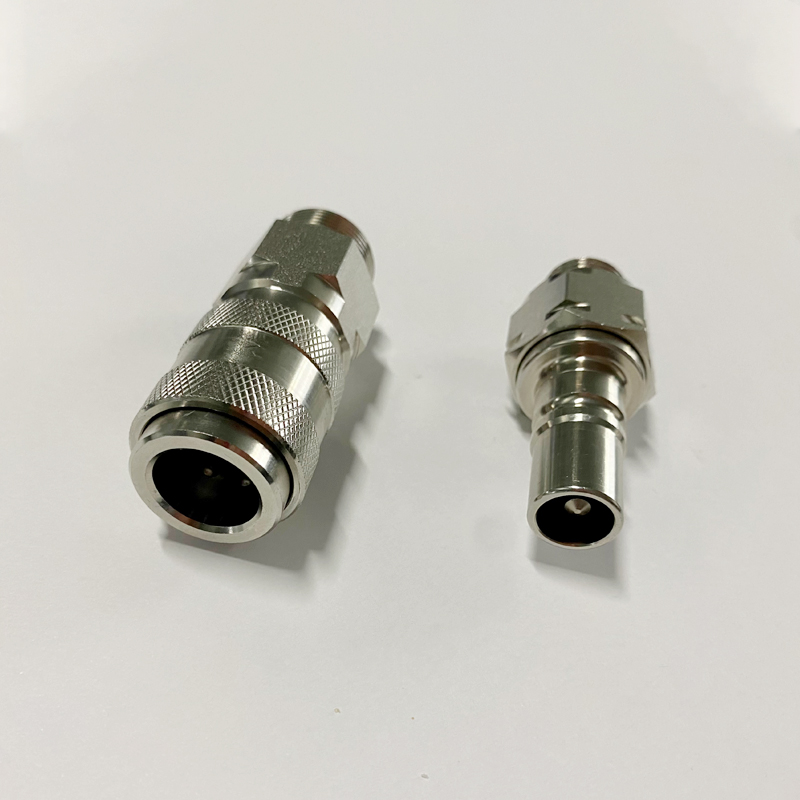

Double shutoff quick coupling RME quick release couplings for thermal management fluid connectors

5 0 Reviews
RME quick release couplings are an ideal choice when a secure seal is of utmost importance. They are designed so that sealing takes place before the opening of the valve, ensuring leak-tight connection. Durable construction materials guarantee enhanced resistance to corrosion in the presence of liquids and cooling fluid additives. We also offer a version with a protector that guards the sealing and locking elements from external agents such as water and dust.
Availability:
Quantity:
sharethis sharing button

Double shutoff quick coupling RME quick release couplings for thermal management fluid connectors

APPLICATIONS

  • Cooling of electronics in power converters

  • Temperature control devices in plastic injection

  • Cooling systems for UV lamps on offset machines (packaging, drying, sterilization ...)

  • Main power circuit for water

  • Supply of fuel gas (methane) for preheating of the moulds in aluminum foundry

  • Filling with insulating gas SF 6 on electrical transformers

  • Engine coolant circuits

  • Low pressure hydraulic circuits

1, Safe and quick locking

With a large number of locking balls.

2, Reliable and robust

The choice of materials gives RME couplings robustness and reliability as well as increased resistance to corrosion in the presence of liquids and cooling water additives.

3,Performance

Due to their internal design, the RME couplings have an excellent flow/pressure drop ratio providing optimum flow in compact overall dimensions.

4, Safety

RME couplings are leak tight on connection and disconnection. On insertion of the plug into the socket sealing takes place before the opening of the valves which avoids the need to purge circuits and any contamination of fluid. RME couplings are particularly suitable for:
• hot oil circuits: no ejection of
fluid on the operator,
• converters: no spray of fluid into
powered devices,

• very low amounts of gas are

released into the atmosphere


Construction

Brass and stainless steel with surface treatment

WX20230508-1452392x


WX20230508-1455472x副本

WX20230508-1456472x副本


WX20230508-1503012x

The RME couplings are delivered with Nitrile seals as standard.

Recommendation

The working temperatures and pressures are given for the Stäubli plug/socket set alone.

It is essential to ensure that the other components of the circuit (hoses, end connections…) are also appropriate for the application

KES sealing-kit

Possible on all the BSP parallel male threads.

• Part-numbers of the KES sealing-kits:

WX20230508-1508372x


Protective dust caps

WechatIMG14506

Available for all the models.
• Max. working temperature: 100 °C

Socket dust cap part number: RME xx.8500

Plug dust cap part number: RME xx.8550

Replace xx with the passage flow diameter of the socket and plug.

Ex.: RME 09.8500 = 9 mm passage flow diameter socket dust cap.

rme3


rme1


rme2
