ISO5675 S5 tutu kple hehe ƒomevi hydraulic push be woatsɔ aƒo ka na tube fittings .

ISO5675 S5 tutu kple hehe ƒomevi hydraulic push be woatsɔ aƒo ka na tube fittings .

5 0 ƒe numedzodzrowo .

ISO5675 S5 tutu kple hehe ƒomevi hydraulic push be woatsɔ aƒo ka na tube fittings. S5 series Quick couplings nye pull-push type, vevitɔ si zãa agble si wozãna le agbledede me,abe Mobile Plant, Trailers kple Miner Truck ene.

Nudzadzra ŋkɔ:
RH .
Code:
S5.
Nusi wotsɔ wɔe: carbon steel .
Ka: BSPT(R), BSPP(G), NPT, metrik .
Nutrenu si wozãna ɖaa: NBR .

Kpɔɖeŋu:
S5-02 . S5-03 . S5-04 . S5-06 . S5-08 .
Agbɔsɔsɔme:




Ðo nyabiase ɖa . Tsɔe de kusi me .

Adzɔnuwo ŋuti nuŋlɔɖi .

ISO5675 S5 push kple pull type hydraulic push be woatsɔ aƒo ka na tube fittings (gaƒoƒo si mexɔ dzo o).

Ŋutilã ƒe lolome (le) .	1/4.	3/8 .	1/2.	3/4.	1
Nyaƒoɖeamenu si woɖo ɖi (PSI) .	5000	4000	4000	3000	3000
Sisi ƒe Sisi (GPM) .	3	6	12	28	50
Dzoxɔxɔ ƒe didime (STD nutrenuwo) .	-20°C na . + 80 °C
Standard nutrenu nu .	NBR .

S5 Series Couplings Feature:
1.Double acting sleeve na asi ɖeka push-to-connect dɔwɔwɔ ne coupler nye clamp alo bulkhead ɖo.
2.Poppet valve siwo li be woatsɔ axe mɔ ɖe tsi si meku ɖe wo nɔewo ŋu o nu.
3.Poppet valves ʋuna le eɖokui si ne wotsɔe kpe ɖe eŋu, le dɔwɔwɔ ƒe nyaƒoɖeamenu si woɖo ɖi me, be wòana tsi si sina kabakaba la nanɔ anyi kabakaba.
4.Critation akpawo sesẽna na be woanɔ anyi eteƒe nadidi.
5.Tsitretsitsi ƒe mɔ̃ si nɔa te ɖe bɔlƒoƒo dzi la léa srɔ̃ɖeɖe ƒe afãwo ɖe wo nɔewo ŋu.
6.Socket kple Plug nye pɛpɛpɛ machined tso solid bar stock.
7.S5 Series wɔ ɖe ISO5675 ƒe dzidzenu dzi.
8.Trɔtrɔwo kple Papker 4250 Series, kabakaba CPV-CNV Series.

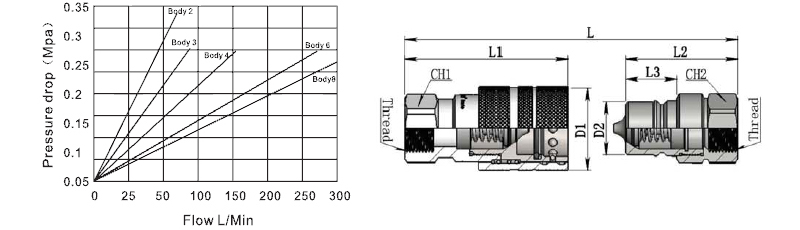

Dzinukpɔkpɔ:
S5.JPG .

Akpa 1 lia .	ISO .	Ka	L .	L1.	L2.	L3.	D1.	D2.	CH1.	CH2.
S5-02 .	6.3	1/4.	89.5	64	44	18.5	26	12	19	19
S5-03 .	10	3/8 .	95	67	51	22.8	32	17.3	22	22
S5-04 .	12.5	1/2.	99.3	71	61	32.7	38	20.5	27	27
S5-06 .	20	3/4.	126.5	92	65	30.5	46	29	36	36
S5-08 .	25	1	139	104	72	37	50	34.3	41	41
