H5000 poppet couplings Series Pull to Connect Double Shut-Off Quick Disconnect Couplings steel quick disconnect

5 0 Reviews

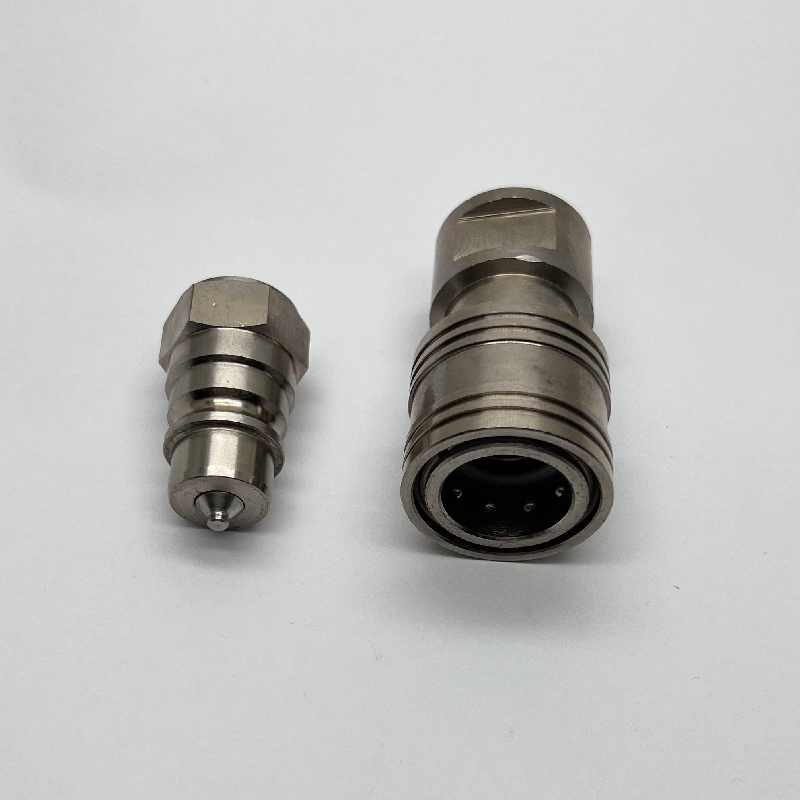

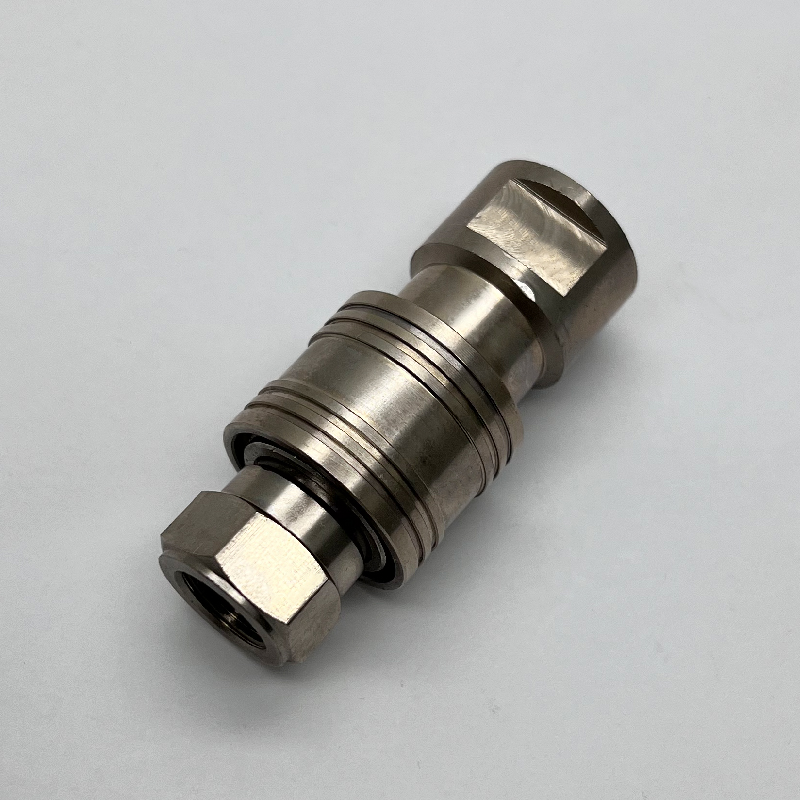

H5000 Series steel quick disconnect coupling
is a pull to connect double shut-off coupling. Featuring the original Eaton GromelleTM profile, it remains as “the” series users prefer when it comes to severe hydraulic applications such as high pressure, pressure impulses, heavy mechanical loads and frequent connection and disconnection cycles. The unique sleeve lock option offers a reliable solution and benefit to the end user when safety is a concern.
Availability:
Quantity:
Send Inquiry Add to Basket

sharethis sharing button

H5000 poppet couplings Series Pull to Connect Double Shut-Off Quick Disconnect Couplings steel quick disconnect


Our H5000 Series is designed for high pressure applications and is well-adapted to resist hydraulic and mechanical constraints. It is available in sizes from 1/8” to 2”, in brass, steel and AISI 316L stainless steel. Working pressure is up to 1000 bar / 14,500 psi.

1: Product Features

  1. Proprietray profile

  2. Pull-to connect with double shut-off valving.

  3. Ball-locking

  4. Optional safety sleeve lock provents and accidental disconnections

  5. Pressure performance

  6. Standard body material: brass, steel and AISI 316L stainless steel


2: Physical Characteristics

Physical Characteristics

For pulsating pressures when disconnected apply a multiplier of 0.5

Indicated values refer to a 1 bar/14.5 psi pressure drop.


3: Seal Elastomer Data

Seal Elastomer Data

For reference only, based on Eaton recommended temperatures.

In accordance with NF L 17-241 or NAS 1613 rev. 5


1

* Body sizes 1¼, 1½ and 2 are supplied with FKM seals as a standard.

** Alternative end connections available upon request.

2

* Alternative end connections available upon request

H5000 2


H5000 4
