The 1J9 is a 90-degree elbow hydraulic adapter with JIC male 37° flare ends on both ports. It is one of the most common adapters used to route hydraulic lines around a valve block, pump or power unit where a straight run is not possible. This guide explains the thread standard, available sizes, pressure ratings, common part number formats and typical applications for the 1J9 series.
What Is the 1J9 90° JIC Male 74° Cone Adapter?

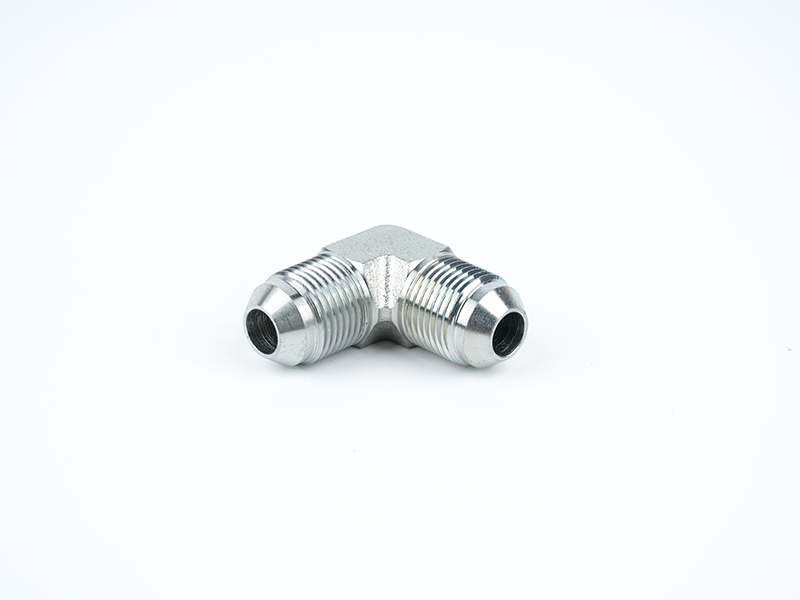

The 1J9 is a forged elbow adapter that joins two JIC male 37° flare tube ends at a 90-degree angle. Both ports are male, so the 1J9 is used between two female JIC fittings or tube ends. The 74° in the product name refers to the included angle of the sealing seat (the flare surface), which is machined to mate with a 37° flare tube nipple.
The 1J9 follows SAE J514 and ISO 8434-2 geometry and is dimensionally interchangeable with major international brands such as Parker, Gates, Eaton and Aeroquip. Every adapter is pressure-tested before packing at the Yuyao factory.
Key Features of the 1J9 Adapter
Forged C45 / AISI 1045 carbon steel body for high burst strength.
Trivalent zinc plating with chromate seal — passes 96 h neutral salt spray (ASTM B117).
Precision-machined 37° flare sealing surface on both ends for leak-free JIC connections.
UNF parallel threads to SAE J514 / ISO 8434-2.
100% pressure tested before delivery.
Stainless steel 316 option available on request for marine and chemical service.
1J9 Specifications and Sizes
Part Number
JIC Thread (both ends)
Tube OD
Working Pressure (PSI)
Material
1J9-04-04
7/16-20 UNF
1/4"
5000
Carbon steel, zinc plated
1J9-06-06
9/16-18 UNF
3/8"
5000
Carbon steel, zinc plated
1J9-08-08
3/4-16 UNF
1/2"
4500
Carbon steel, zinc plated
1J9-10-10
7/8-14 UNF
5/8"
4500
Carbon steel, zinc plated
1J9-12-12
1-1/16-12 UNF
3/4"
4000
Carbon steel, zinc plated
1J9-16-16
1-5/16-12 UNF
1"
3500
Carbon steel, zinc plated
1J9-20-20
1-5/8-12 UNF
1-1/4"
2500
Carbon steel, zinc plated
Working temperature range: -30 °C to +120 °C with standard NBR seals. FKM (Viton) seals are available for high-temperature or synthetic fluid service.
1J9 Part Number Breakdown
The 1J9-08-08 format reads as follows:
1J9 — body style: 90° elbow, JIC male / JIC male.
-08 (first) — dash size of port 1 (3/4-16 UNF, 1/2" tube).
-08 (second) — dash size of port 2 (3/4-16 UNF, 1/2" tube).
For a reducing elbow, the larger dash size comes first, for example 1J9-12-08. Equal and reducing configurations are stocked from dash 04 to dash 20.
Common Applications for the 1J9 Adapter
The 1J9 is used wherever a hydraulic line must turn 90 degrees without adding extra couplings. Typical applications include:
Routing pressure lines around valve manifolds on mobile equipment.
Connecting pump discharge ports to hose assemblies in power units.
Building return-line loops on excavators, loaders and telehandlers.
Compact hydraulic panels in factory automation and injection moulding machines.
Agricultural tractors and harvesters where space is limited.
What thread standard does the 1J9 90° JIC male adapter use?
The 1J9 uses JIC (Joint Industry Council) 37° flare connections on both ends, machined to SAE J514 and ISO 8434-2. The threads are UNF (Unified National Fine) parallel. The 74° in the product name refers to the seat angle of the flare, not the flare itself; the flare is 37°.
What is the maximum working pressure of the 1J9 elbow adapter?
Working pressure depends on size. Standard JIC 37° flare pressure ratings from SAE J514 are approximately 5000 PSI at 1/4 inch, 4500 PSI at 1/2 inch, and 2500 PSI at 1-1/4 inch. Ruihua hardware pressure-tests every 1J9 adapter before packing.
Can the 1J9 adapter be reused after installation?
Yes. JIC 37° flare fittings can be disassembled and re-used, provided the flare sealing surface is undamaged and free of corrosion. Always replace the mating half if the sealing cone shows scoring, galling, or ovality above 0.005 inch.
Is the 1J9 compatible with Parker, Gates or Aeroquip part numbers?
Yes. The 1J9 follows the same body geometry, thread and seat dimensions as the Parker 90° elbow JIC male unions, Gates GM-90 and Aeroquip 2020-90 series. Ruihua hardware manufactures the 1J9 to be a direct dimensional cross for these brands.
What material and finish does Ruihua hardware use for the 1J9?
The 1J9 body is machined from C45 / AISI 1045 medium carbon steel. Standard finish is trivalent zinc plating with a chromate seal that passes 96 hours of neutral salt spray testing per ASTM B117. Stainless steel 316 is available on request for marine and chemical service.
