An assembly crew once built a new press circuit with metric 24 degree cone fittings that looked right, threaded together fine, and passed the first pressure test. Three weeks later, every joint on the high side wept. The DIN 2353 light vs heavy series decision explains the failure, because the fittings were not defective. The crew had assembled light series parts onto a circuit that lived at 630 bar. That gap between what a part is and what a circuit demands is what this standard split is about, and it is a decision the standard makes for you if you read it correctly.
This article walks through what DIN 2353 actually defines, where light series ends at 315 bar, what heavy series adds on the machine, and how the two series differ inside the factory before they ever reach your bench.
The Bench Story: A Light Series Joint on a 630 Bar Press
Here is how the failure looked from the operator side. The joints were tight. The nuts had been torqued to feel. The cutting rings had bitten the tube cleanly. Nothing was cross-threaded. Yet the weep returned after every pressure cycle, always at the ferrule, never at the thread.
The reason sits in the geometry. A light series cutting ring is designed to bite a thinner wall and seal at pressures up to 315 bar. On a 630 bar press circuit, pressure spikes flex the tube wall with every stroke. A light series joint survives a static test but works loose under cycling, because the standard never intended that ferrule to carry that load. The fix was not more torque. It was heavier parts. That is the whole point of the light vs heavy split in DIN 2353, and it is the first thing to rule out when a metric compression joint weeps for no visible reason.
What DIN 2353 Actually Defines
DIN 2353 describes a 24 degree cone connection with a cutting ring, also called a ferrule or compression ring. A nut drives the ferrule onto the tube. As it advances, the leading edge of the ferrule bites into the tube surface and the rear face seals against the cone in the fitting body. The standard splits the system into two series:
Light series (L): the standard industrial series, rated to 315 bar with the appropriate tube, covering the common tube outside diameters from 6 to 42 mm on the Ruihua Hardware line.
Heavy series (S): the high pressure series, rated to 630 bar, built around thicker tube walls and heavier part cross sections.

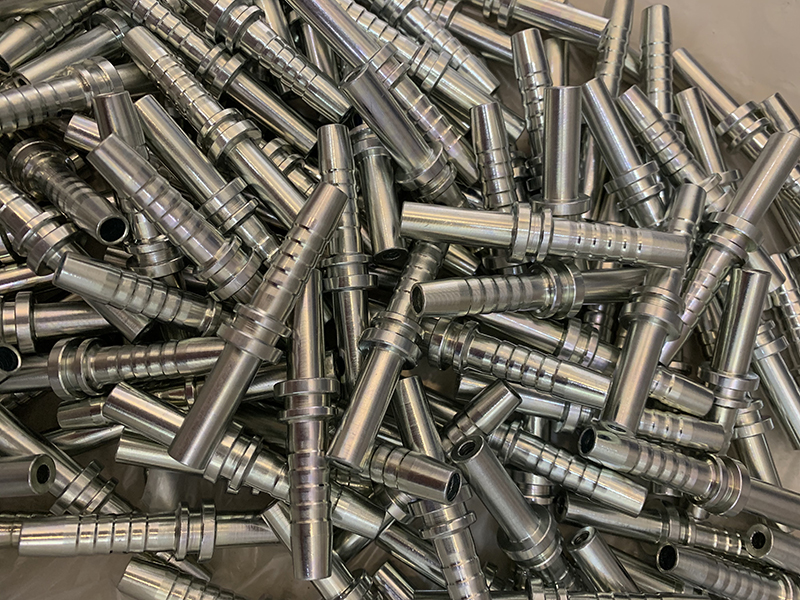

ISO 8434-1 is the international edition of the same connection. Most popular sizes are dimensionally aligned, which is why drawings on this product family usually cite both. The 50011 metric standpipe straight, for example, is specified per DIN 2353 and ISO 8434-1 with light series to 315 bar and heavy series to 630 bar. You can review the full size list on the 50011 standpipe straight page.
Light Series: The Right Answer for Most Industrial Circuits
Light series is not the budget option. It is the correct series for the majority of fixed industrial hydraulics. Machine tools, injection molding machines, power packs and test benches run at working pressures well inside 315 bar. Light series gives those circuits easier assembly, smaller hex sizes and wider tube availability.
On the factory floor, light series parts are easier on the crew in three ways. The nuts need less torque, so a standard set of wrenches covers more of the machine. The thinner tube walls bend and flare with less effort, which shortens tube prep. And light series stock covers more sizes, so a distributor that carries one series can serve most of a plant. This is why the 6C metric bulkhead fitting, like most panel mount parts, is made in light series with two 24 degree cone ends.
Heavy Series: Where the Extra Steel Goes
Heavy series looks similar on the outside. The differences are in the metal. The fitting body carries a thicker wall under the threads. The nut is larger across the flats and heavier in section. The ferrule geometry is built to bite a thicker tube wall and hold it under shock. The result is a joint rated to 630 bar that also tolerates the vibration and pressure cycling of mobile equipment, presses and high pressure test rigs.
For the assembly crew, heavy series changes the feel of the job. Expect bigger wrenches, more tightening torque and more pre assembly turns than the same tube size in light series. Do not translate habits across series. A heavy series nut stopped at light series torque will not have seated the ferrule, and the joint will pass a static test and weep later. Follow the tightening table for the series in your hand, not the one you used yesterday.
What Ruihua Hardware Machines Differently Between L and S
Both series start from the same C45 carbon steel bar stock and leave the plant with the same 8 to 12 micron zinc-nickel plating, verified to 240 hours of ASTM B117. The difference is made at the machining step, and it is worth showing because it explains the price and the performance gap.
At Ruihua Hardware, heavy series parts run a deeper and thicker wall under the thread, a larger hex on both body and nut, and a ferrule with a heavier bite edge. The extra material is not cosmetic. It moves the stress of the pressure load out of the thread root and into the cone seat, which is where a high pressure joint is designed to carry it. Heavy series bodies also go through proof pressure testing before shipment, because a 630 bar part has to demonstrate margin, not just dimensional tolerance.
One production detail matters for your stores. Nut, ferrule and body are matched and shipped as one set. Mixing a light series nut with a heavy series body is the single most common assembly error we hear about from European customers, and it produces exactly the weep story that opened this article.
Five Checks Before You Default to Light Series
Light series is the right default for most circuits, but run these five checks before the purchase order goes out:
Working pressure. If the circuit sits above roughly 250 bar, or anywhere near the 315 bar ceiling, price the heavy series option on the same RFQ.
Pressure spikes. Accumulators, presses and quick cycling create shocks that fatigue a light series ferrule long before the gauge shows a problem.
Duty cycle. Mobile machines and vibratory equipment justify heavy series even at moderate pressure.
Tube wall. Heavy series expects a thicker wall at the same outside diameter. Confirm the tube spec, not just the tube size.
Stores discipline. Label bins by series. The two look alike out of the box, and a mixed bin guarantees a mixed joint.
Two of the five checks cost nothing at design time and everything at commissioning time. They are the checks worth doing twice.
The Same Choice Exists in Flanges: 1JFL vs 1JFS

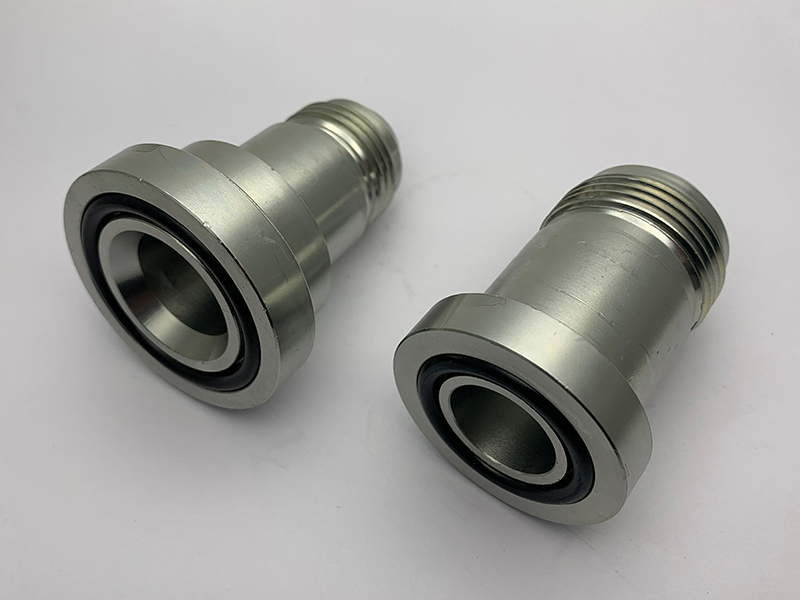

The light vs heavy split is not unique to 24 degree cone fittings. It repeats in the SAE flange world under ISO 6162-1, and the two families on the Ruihua Hardware products page mirror each other. The 1JFL straight flange is the light series part for code 61 style service. The 1JFS straight flange is the heavy series counterpart, and the 9 elbow versions of both carry the same split.
The logic transfers directly. A light series flange on a moderate pressure pump outlet is the efficient choice. A heavy series flange on a press or a mobile boom circuit buys the margin the circuit needs. Same decision, different connection, and the standard draws the line for you in both families.
Frequently Asked Questions
Can I mix a light series nut or ferrule with a heavy series fitting body?
No. DIN 2353 defines the body, the cutting ring and the nut as one matched system per series. The threads of a light series nut may spin onto a heavy series body, but the cone angle, wall thickness and bite geometry no longer line up. The joint can hold on the bench and weep under pressure cycles. Always install the nut, ferrule and body from the same series, ideally from the same manufacturer.
When does the system force you into heavy series instead of light series?
Three situations cover most cases. The working pressure sits at or near the 315 bar ceiling of light series. The circuit sees sharp pressure spikes from accumulators, presses or mobile machinery. Or the line is so short that you cannot grow the tube wall to carry the load in light series. Heavy series is rated to 630 bar and absorbs shock that would work a light series joint loose over time.
Do light series and heavy series fittings use the same tube?
The tube outside diameter is often the same, but that is where the similarity ends. Heavy series expects a thicker tube wall, so the same OD carries more pressure. The heavy series nut is also larger across the flats and needs more tightening torque. Never judge a heavy series joint by the feel of a light series assembly. Follow the tightening tables for the series you actually have in your hand.
Is DIN 2353 the same standard as ISO 8434-1?
They cover the same 24 degree cone with cutting ring connection. ISO 8434-1 is the international edition that grew out of DIN 2353, and the popular sizes are dimensionally aligned, so a light series joint built to one standard mates with the other in most sizes. The safe practice on drawings and RFQs is to cite both, for example DIN 2353 and ISO 8434-1, light series, so the supplier cannot assume a different series.
Get the Right Series on Your Next Quote
Send the working pressure, the duty cycle and the tube spec, and the quote comes back with the series the circuit actually needs. Ruihua Hardware quotes both series side by side so the decision is documented, not guessed. Browse the metric range on the products page, check the light and heavy series standpipe data on the 50011 series page, then send your RFQ through the contact page. A quote with series options, prices and lead times comes back within one working day.
