A design team once approved a manifold drawing with G1/4 ports on one side and M14x1.5 ports on the other. Both looked like standard hydraulic threads. The supplier shipped adapters marked "metric/BSP interchangeable." At commissioning, every second joint wept oil. The batch came back. That mistake is why Ruihua Hardware engineers run five checks before any thread appears on a BOM. Here is what metric vs BSP hydraulic threads actually differ on, and how to stop the same return.
1. Parallel thread or tapered thread
Metric ports per ISO 9974 and DIN 3852 use parallel threads. BSP has two faces: BSPP (G) is parallel, while BSPT (R) is tapered. A tapered male will start into a parallel port, and an assembler may even torque it to the drawing value before the crack shows. Check the thread-form symbol on every port callout. If the drawing says "BSP" without a P or T suffix, stop and confirm.
2. Where the seal actually sits
A metric male O-ring seals against a flat port face with an elastomer captured in a groove. BSPP seals with a bonded washer or a soft seal under the hex. BSPT seals on the thread flanks. A fitting that turns freely into both standards may seal in none of them. When a metric O-ring port must meet a BSP male end, Ruihua Hardware supplies the 1EZ metric male O-ring / BSP male adapter so each thread keeps its own sealing method.
3. Pitch and diameter are closer than you think
G1/4 and M14x1.5 are not the same, but G1/8 and M10x1 are close enough to start by hand. That is the danger. Threads engage, so the bench test looks fine. Measure pitch with a thread gauge and count threads over 10 mm before the drawing leaves the office. Do not trust a visual match.
4. Port depth and bore diameter
A metric O-ring port needs a counterbore for the O-ring and a defined minimum thread engagement. A BSP port needs less depth but a different bore for the bonded washer. Swapping standards without updating the manifold machine program leaves either a crushed seal or a free-running thread. Ruihua Hardware recommends sending the port drawing for review whenever a design crosses from metric to BSP.
5. One standard per circuit
The cheapest fix is also the most reliable: pick one thread system per hydraulic circuit. If the rest of the machine is ISO 9974 metric, design out the BSP port. When a mixed legacy system cannot be changed, add a transition adapter as a discrete BOM item rather than asking the assembler to make it work.
The transition adapter that buys one clean interface

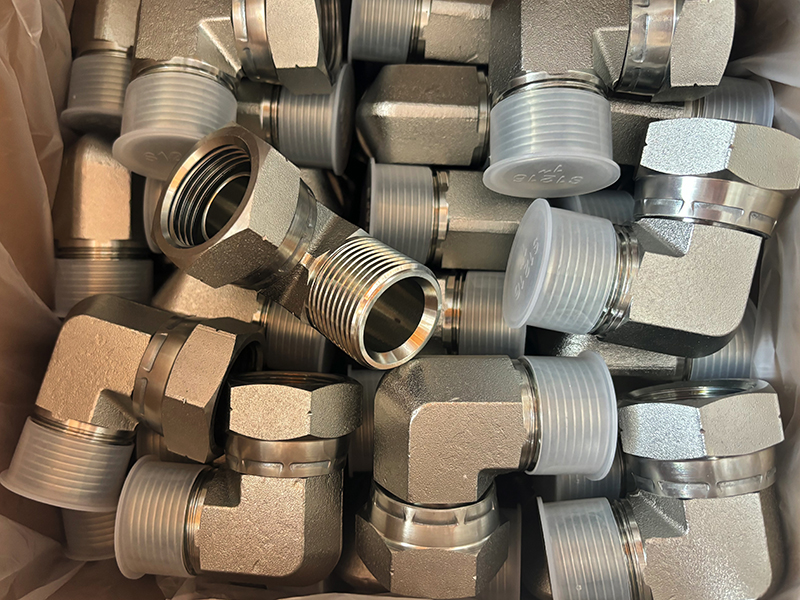

The 1EZ metric male O-ring / BSP male straight adapter from Ruihua Hardware joins a metric ported block to a BSP tube or hose end in one piece. It keeps each thread on its own correct sealing surface, so there is no ambiguity at assembly. For circuits that need BSPP with a bonded seal, the 2BC/2BD family gives a male BSP thread with the washer captured in place.
FAQ
Can I use PTFE tape on a metric O-ring port?
No. Metric O-ring ports seal on the O-ring and the flat face, not the threads. Tape can shift the O-ring out of its groove and cause a leak.
Why do G1/4 and M14x1.5 look interchangeable?
They are both common sizes on hydraulic equipment, but the thread form, pitch, and sealing method are different. Close visual similarity is the main reason mixed batches happen.
What is the safest way to join a metric block to a BSP hose?
Use a transition adapter designed for the two standards, such as the 1EZ metric male O-ring to BSP male adapter. It keeps each thread on its correct sealing surface.
Get a drawing review before the batch is cut
Send the manifold or port layout for review. Ruihua Hardware engineers check thread form, port depth, and adapter selection against DIN and ISO standards. Browse the hydraulic adapters catalog or reach us through the contact page for a fast quote.
