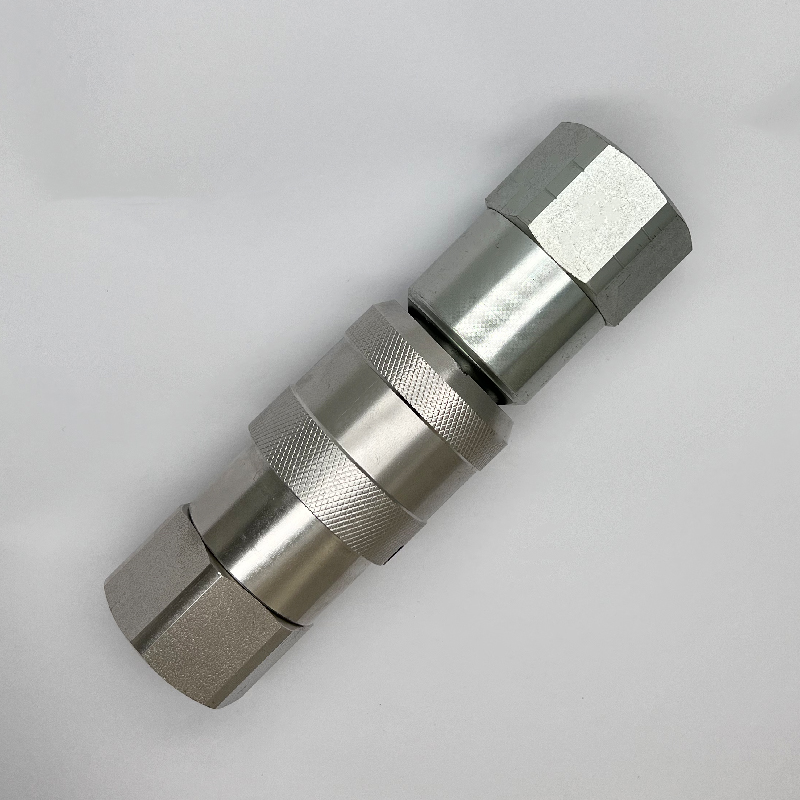

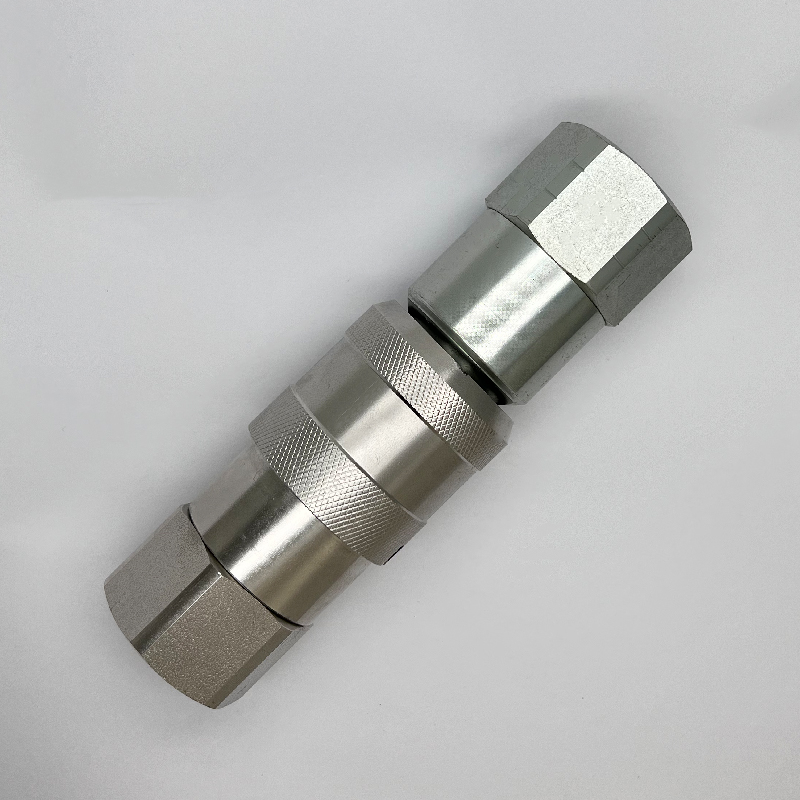

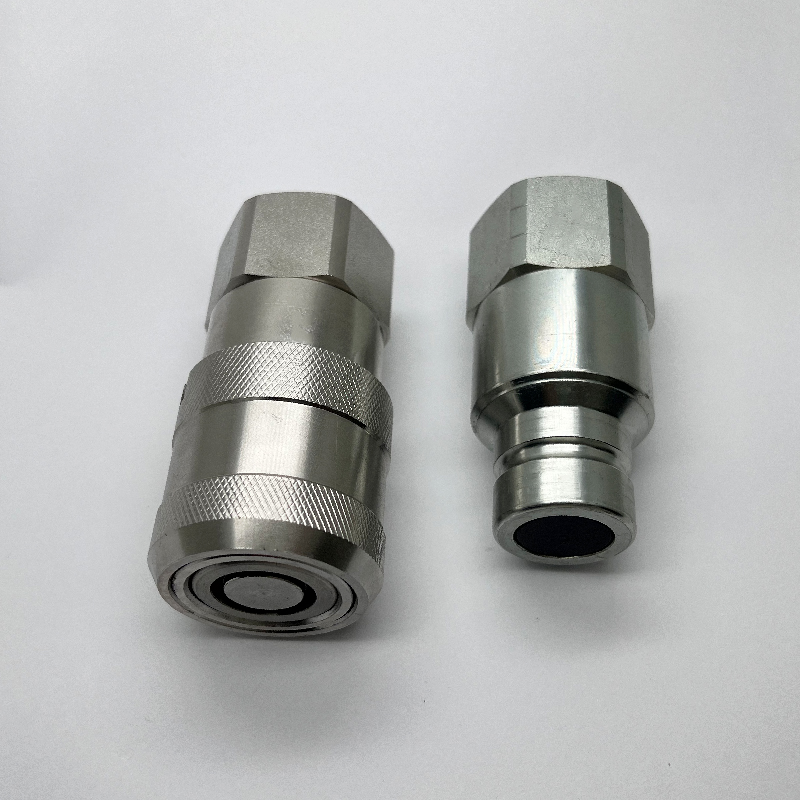

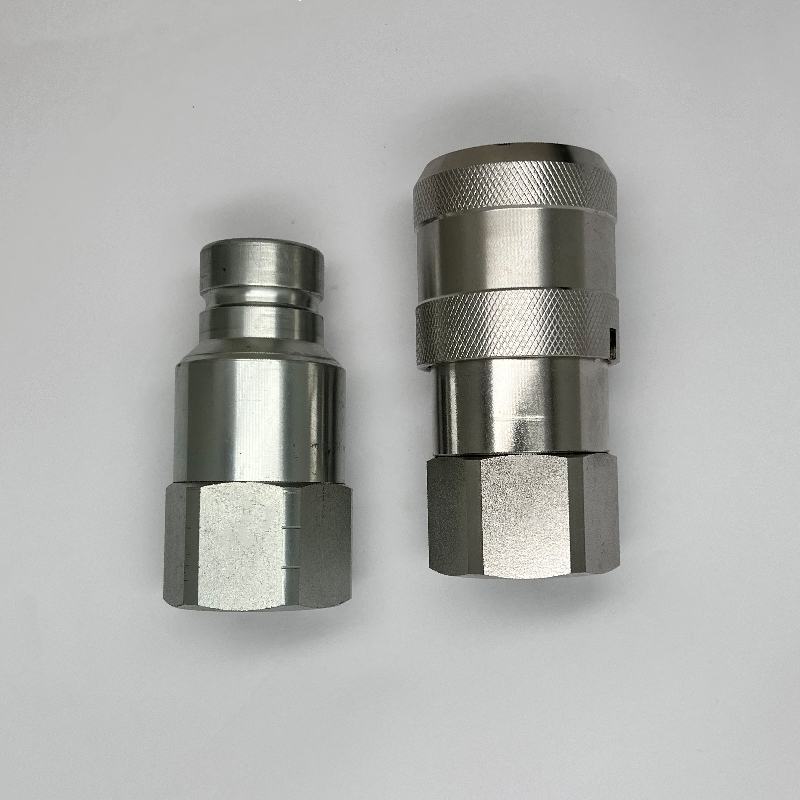

FS Series Stainless Steel Flush face valves, chemical compatibility Non-Spill Hydraulic Quick Couplings

5 0 Reviews
FS Series Stainless Steel Flush face valves, chemical compatibility Non-Spill Hydraulic Quick Couplings
Availability:
Quantity:
sharethis sharing button

FS Series Stainless Steel Flush face valves, chemical compatibility Non-Spill Hydraulic Quick Couplings

FS Series dry disconnect couplings are ideal for closed system transfer and dispensing of chemicals and other fluids. The flush valves eliminate spillage and air inclusion when connecting and disconnecting to result in minimal environmental contamination.


Features:

•  Flush, non-spill valves enable ease of cleaning
•  316 stainless steel material for chemical compatibility
•  Push to connect operation
•  Fluorocarbon standard seal material with options available


Applications include:

• Chemical dispensing systems

• Chemical processing

• Food processing

• Corrosive media transfer


Materials of Construction:

Machined Parts: Stainless Steel, AISI type 316

Springs: Stainless Steel, AISI type 316

Locking Balls: 1/4 - 3/8”: 302 SS;

       1/2 - 3/4”: 316 SS

       1”: 440 SS

Backup Washers: PTFE

Elastomer Seals: Fluorocarbon is standard.

              Wide range is available.


FS 12


FS 3FS 1FS
