STU Series Bi-Directional Hydraulic Throttle Valve: Precision Speed Control for Hydraulic Cylinders, Motors & Industrial Machinery
Views: 10 Author: Lynn Liu Publish Time: 2026-05-26 Origin: Site
If you run hydraulic equipment — a scissor lift, a CNC machine, or an agricultural harvester — you know smooth speed control matters. That's exactly what the RUIHUA HARDWARE STU Series Bi-Directional Hydraulic Throttle Valve (also called a hydraulic speed control valve or inline flow control valve) is built for. It gives you precise, stable flow control for hydraulic cylinders, motors, and all kinds of industrial and mobile machinery.

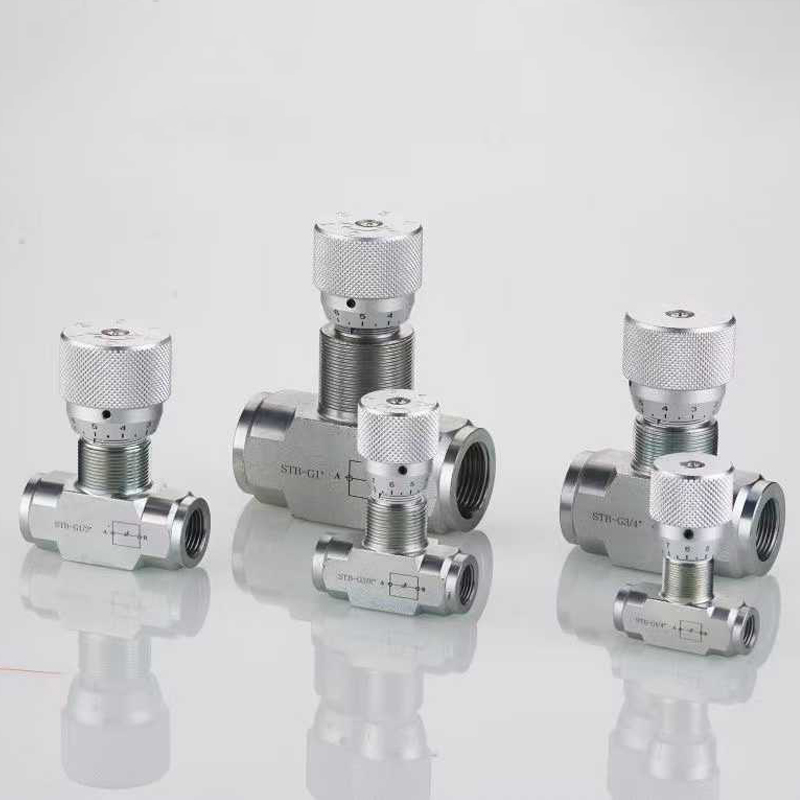

Made by Yuyao Ruihua Hardware Factory — an ISO-certified manufacturer based in Yuyao, Zhejiang, China — the STU Series puts a precision throttle and a check valve in one compact body. This means you can control speed in both directions (extension and retraction) without needing extra valves. Fewer parts, simpler circuit, more reliable system.

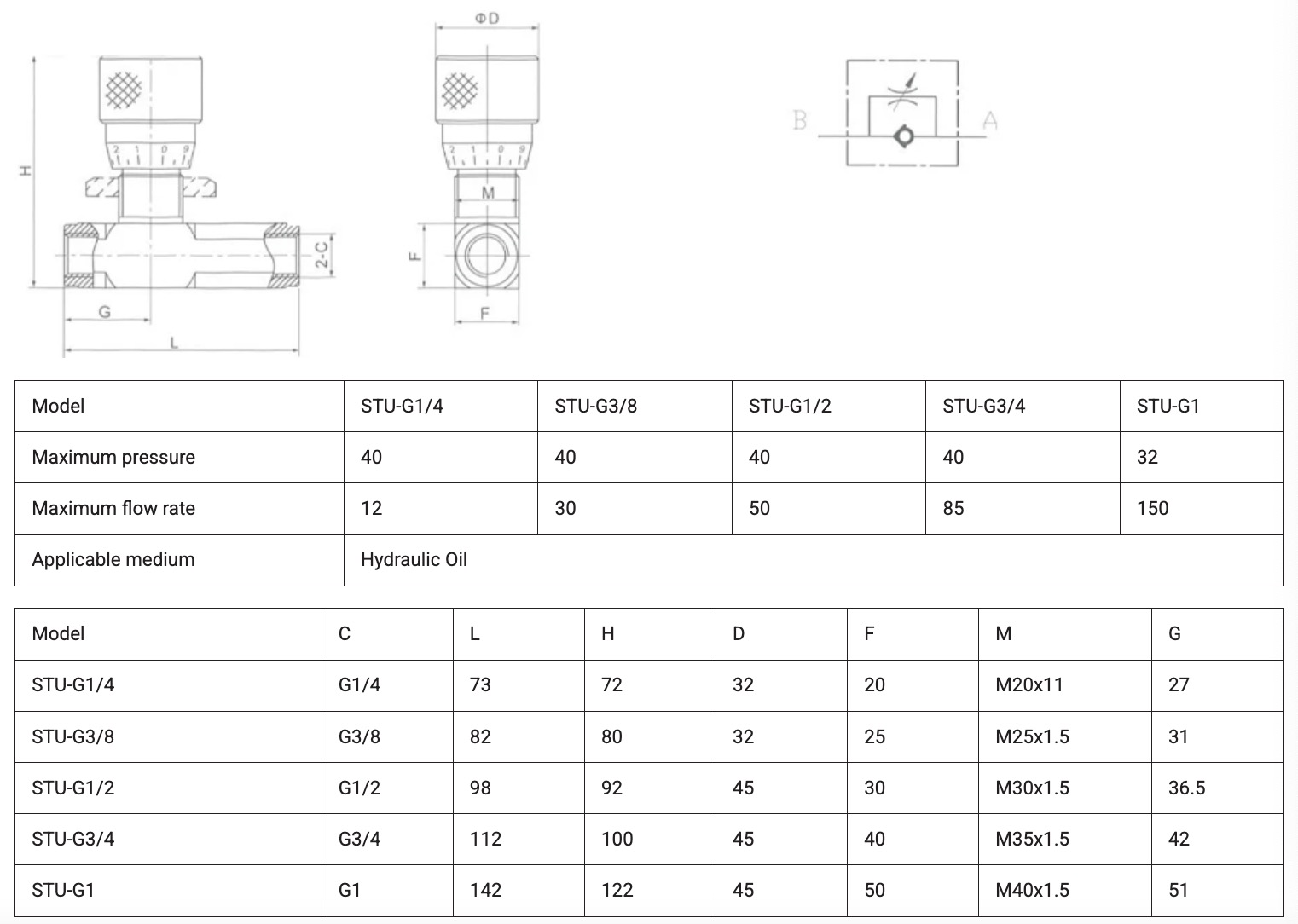

Technical Specifications
STU Series Bi-Directional Hydraulic Throttle Valve – Key Parameters
Parameter
Specification
Product Series
STU Series Bi-Directional Hydraulic Throttle Valve
Maximum Working Pressure
400 bar (5,800 PSI)
Flow Direction
Bi-directional (metered flow both ways with check valve free return)
Check Valve
Integrated, enables free return flow for faster cycle times
Adjustment Mechanism
Knurled adjustment knob with infinite, smooth flow control
Body Material
High-grade carbon steel (standard) or stainless steel (corrosion-resistant)
1/4" to 1" (full standard range; contact for specific size charts)
Application
Hydraulic cylinder speed control, hydraulic motor RPM regulation, machine tool feed rate control, mobile hydraulics
Compliance
ISO 9001 quality management; thread standards per SAE J514, ISO 1179, DIN 3852
Key Features of the STU Series Hydraulic Speed Control Valve
1. Bi-Directional Flow Control with Built-In Check Valve
The STU Series puts a precision throttle and a check valve together in one body. You get metered flow control in both directions — set the speed for cylinder extend and retract, or motor forward and reverse, however you need. On the return side, the check valve opens up for free flow, so your cycle times stay fast. Flow direction arrows are marked right on the body, so there's no guessing during installation.
2. Smooth, Repeatable Adjustments
Turn the knurled knob — that's all it takes. Stepless control from fully closed to wide open. Need a slow, careful creep for positioning? Or full-speed cycling? The STU holds steady even when your load changes. The throttle spool is hardened to resist wear from repeated adjustments, so you get the same performance after thousands of cycles — none of the jitter, stick-slip, or pressure swings you'd get with cheaper valves.
3. Tough, Leak-Proof Build
Body comes in high-grade carbon steel (standard) . Works at pressures up to 400 bar (5,800 PSI). Threads are precision-machined for a tight fit, and the sealing keeps fluid where it belongs. The case-hardened spool holds its shape even after heavy use — important when you're running equipment in construction, mining, marine, or chemical plants where downtime costs real money.
4. Sizes to Fit Your Setup
Available from 1/4" to 1" with common thread types — NPT, BSP. Just screw it in-line, no adapters, no complicated changes. Works for new builds or upgrading what you already have in the field.
How Does a Bi-Directional Hydraulic Throttle Valve Work?
A throttle valve controls flow by changing the size of the opening that oil passes through. Here's how the STU Series does it:
Metered flow side: Oil enters the valve and passes through the adjustable opening. Turn the knob clockwise to make the opening smaller (slower speed), counterclockwise to make it bigger (faster speed).
Free return side: When oil flows the other way, the built-in check valve opens and lets it bypass the throttle. Oil goes straight back to the tank at full speed — shorter cycle times, less heat.
Both directions: If you need controlled speed for both extend and retract on a double-acting cylinder, just install two STU valves in series with the check valves facing opposite ways. Or, depending on your circuit, one valve can meter both directions.
Bottom line: one STU valve replaces a separate throttle and check valve in most setups. Simpler circuit, fewer leak points.
Common Applications of Hydraulic Throttle Speed Control Valves
Hydraulic Cylinder Speed Control
Control lift and lower speeds on scissor lifts, hydraulic presses, dump trailers, and material handling gear. The STU Series stops uncontrolled dropping under gravity loads — safer, better positioning.
Hydraulic Motor RPM Regulation
Keep steady rotation speed on conveyor drives, industrial mixers, auger systems, and other rotating equipment. The throttle compensates as loads change, so motors don't overspeed or stall.
CNC Machine Feed Rate Control
Dial in feed rates on CNC lathes, mills, and automated lines. The fine adjustment on the STU Series gives you the control you need for precision machining.
Mobile Hydraulic Equipment
Use on excavators, wheel loaders, agricultural tractors, combine harvesters, and forklift attachments. The carbon steel or stainless body handles vibration, shocks, and weather — exactly what mobile equipment throws at it.
Marine & Offshore Hydraulics
For saltwater environments, go with the stainless steel option. Works on deck machinery, winch systems, and steering gear circuits.
Why Choose RUIHUA HARDWARE as Your Hydraulic Throttle Valve Supplier?
We make it. You buy direct. RUIHUA HARDWARE (Yuyao Ruihua Hardware Factory) is the manufacturer — no middleman. That means factory pricing, and you know exactly where your valves come from: raw material to finished product, all under our roof in Yuyao, Zhejiang, China.
Every valve gets tested. Each STU Series throttle valve goes through pressure testing and flow calibration before it leaves our factory. Our ISO 9001 quality system keeps things consistent batch to batch — fewer warranty headaches, fewer field failures for you.
Built to world standards. We follow SAE J514, ISO 1179, DIN 3852, and other international hydraulic standards. Threads are cut on CNC machines, so fit and seal are right every time.
We export worldwide. RUIHUA HARDWARE ships to the Middle East, Europe, South America, and Southeast Asia. Our team handles inquiries in English, Spanish, Portuguese, and Chinese. We can help with technical docs, shipping, and logistics too.
Small or large — we take both. Need a few pieces to test? A full container for stock? We handle either. OEM and private-label orders are welcome — just ask.
"Product quality is RUIHUA's life. We offer not only products, but also our after-sales service."
Installation and Maintenance Tips
Before You Install
Check the arrow on the valve body — it shows which way the metered flow goes.
Use the right thread sealant or sealing washer for your oil type and system pressure.
Make sure your lines are clean. Debris in the line can clog the throttle.
Don't overtighten. Follow torque specs for your thread size and material.
Keeping It Running
During routine checks, give the adjustment knob a turn to make sure it moves smoothly.
Check that your speed setting hasn't drifted from vibration — tighten the lock nut if the valve has one.
Flush the system when you change the oil. Keeps dirt from building up in the throttle.
For stainless valves in marine use, rinse with fresh water once in a while.
Frequently Asked Questions About RUIHUA HARDWARE Hydraulic Throttle Valves
Q: What's the difference between a throttle valve and a flow control valve?
A throttle valve is one type of flow control valve — it controls flow by changing an opening size. The RUIHUA HARDWARE STU Series takes it a step further by adding a built-in check valve, so you get free flow in the return direction. That's something a basic needle valve can't do. (A pressure-compensated flow control valve goes even further and keeps flow steady when pressure changes — the STU is a non-compensated design, best for systems where pressure stays fairly stable.)
Q: Can one RUIHUA HARDWARE STU valve control both extend and retract on a double-acting cylinder?
Yes, but it works differently in each direction. One side is adjustable — turn the knob to set your speed. The other side opens the check valve and runs at full speed. If you want adjustable speed for both directions, install two RUIHUA HARDWARE STU valves in series with the check valves facing opposite ways. Our team can help you figure out the right setup — just send us your circuit details.
Q: What hydraulic fluids work with the RUIHUA HARDWARE STU Series?
The standard NBR seals work with mineral oil-based hydraulic fluids (ISO VG 32, 46, 68), water-glycol, and oil-water emulsions. If you're running phosphate ester (HFD-R) fluid or your system runs above 80°C (176°F), ask for the FKM seal option when you order from RUIHUA HARDWARE.
Q: What's the minimum order at RUIHUA HARDWARE?
We don't push big minimums. Small trial orders are fine. Large production quantities are fine too. Tell us your size, material, and thread type, and we'll send you a quote with MOQ and lead time.
Q: Does RUIHUA HARDWARE send free samples?
It depends on the configuration you need. In most cases, sample cost can be credited toward your first production order. Contact us with your specs and we'll let you know what's possible.
Q: How fast can RUIHUA HARDWARE deliver STU Series valves?
Standard orders usually ship in 15-30 days, depending on order size and our current production schedule. Stainless steel or custom orders may take a bit longer. Need it faster? Ask about express shipping — we can arrange it.
