KZE-BB 6100 series threaded connection flush valves high flow connect under pressure hydraulic quick couplings

5 0 Reviews

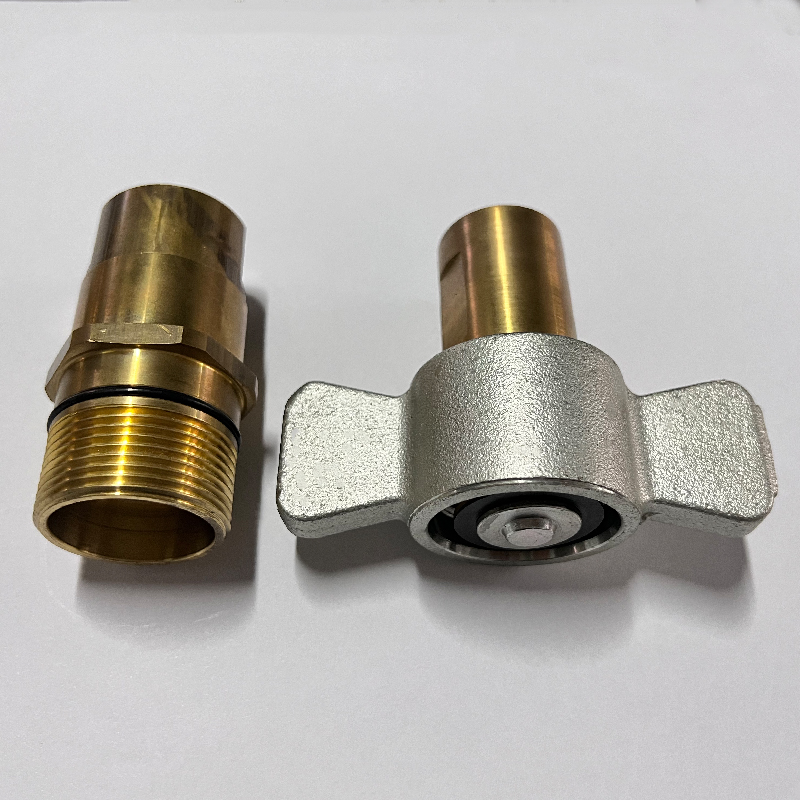

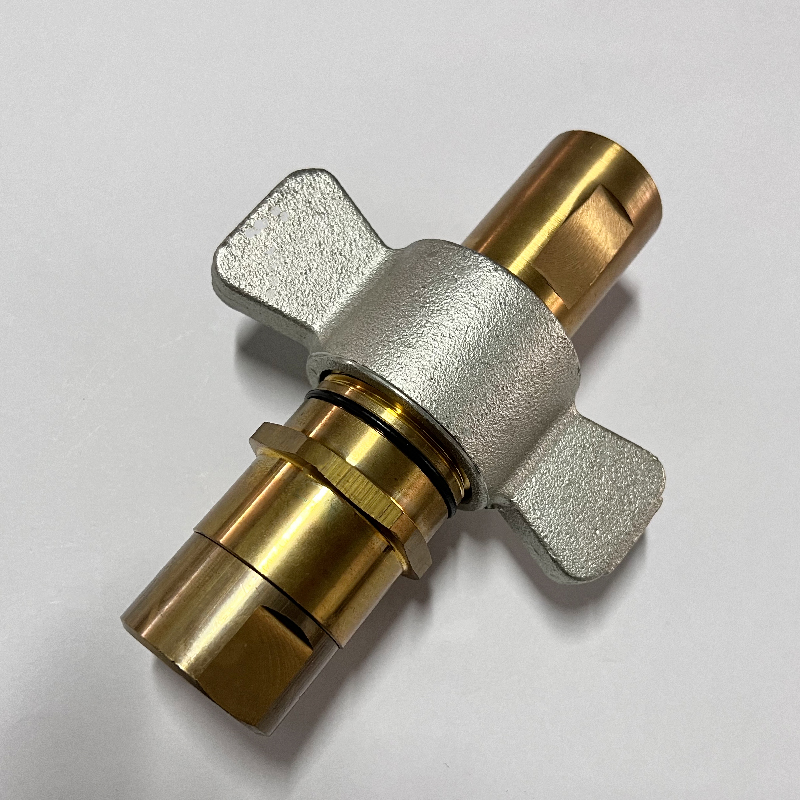

KZE-BB 6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body indicates when the connection is complete and the valves are fully open.
Availability:
Quantity:
Send Inquiry Add to Basket

sharethis sharing button

KZE-BB 6100 series threaded connection flush valves high flow connect under pressure hydraulic quick couplings

6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body indicates when the connection is complete and the valves are fully open.


Features:

  • Rated pressures up to 3000psi

  • Thread to connect operation

  • Bonded valve seal stays in place under full pressure connect and disconnect

  • Visual connection indicator

  • Rugged wing nut sleeve will withstand hammering to tighten or loosen

  • Optional flange for secure bulk head mounting

  • Standard end configuration is female pipe thread

  • Compatible with PARKER 6100 series, FASTER FB series, AEROQUIP 5100 series, HANSEN 96 series.


Applications:

• Submersible pumps

• Oil field equipment

• Dump trailers
• Engine test stands

• Bulk liquid transfer

Body Size(in) 3/4 1 1-1/4
Rated Pressure(PSI) 3000 3000 3000
Rated Flow(GPM) 28 50 88
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR
WechatIMG581

PARTNO. T D HEX1 HEX2 L LS LP
KZE-BB-06 NPT3/4" 106 33.5 29 133.5 66 79.2
KZE-BB-08 1"NPT1" 110 39.5 36 157 83.5 90
KZE-BB-10 NPT1-1/4" 132 48 45 164 89 94

6100 kze-bb 56100 kze-bb 86100 kze-bb 3
