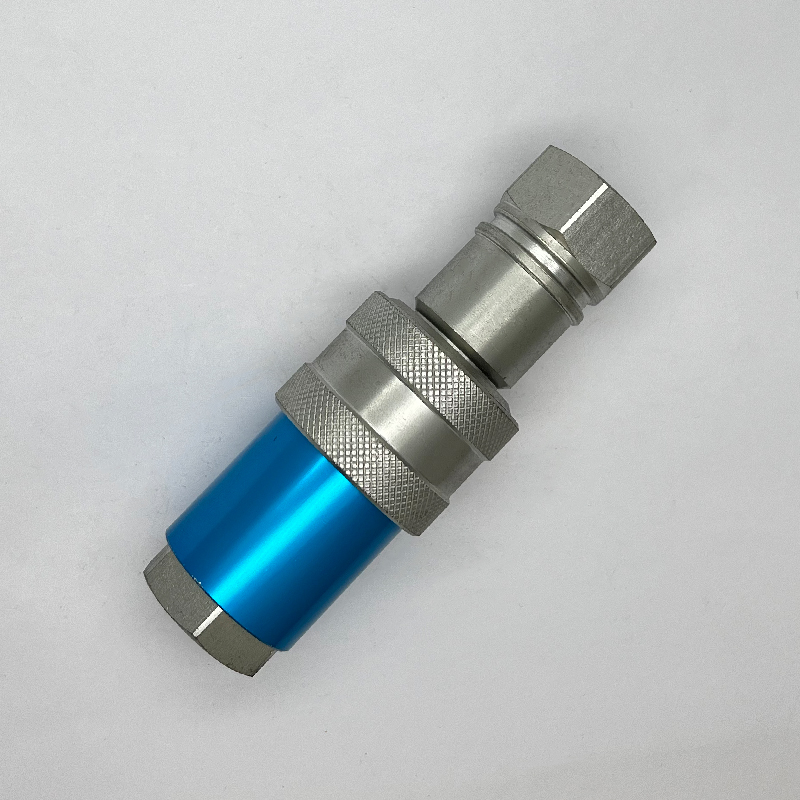

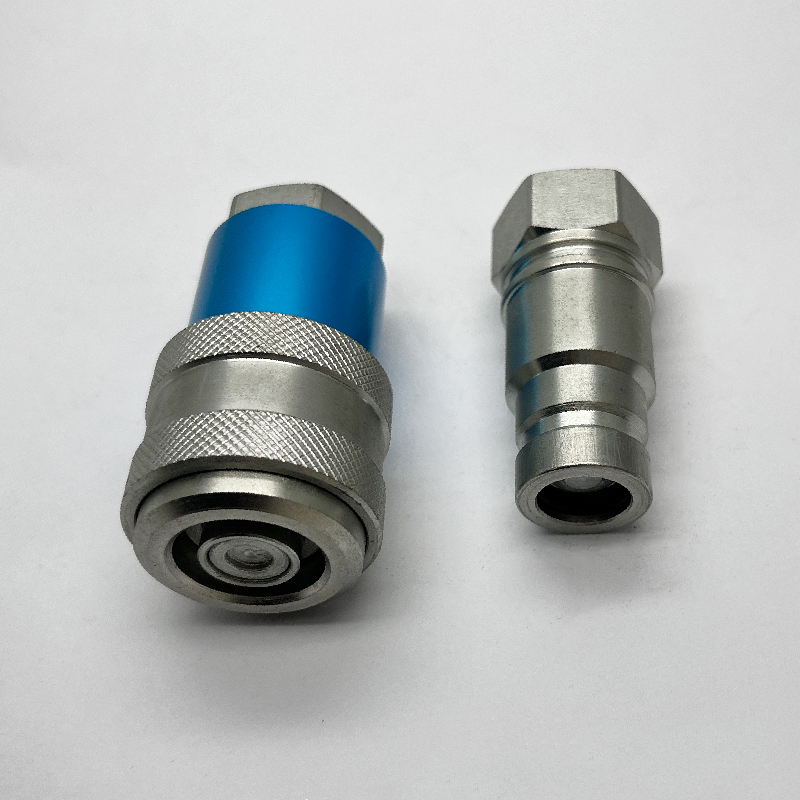

SBA high resistance quick-release couplings anti-pollution hydraulic couplings one-handed falt face valve

SBA high resistance quick-release couplings anti-pollution hydraulic couplings single-handed falt face valve

1: The anti-pollution generation

A design that eliminates residual dead internal volume:

• prevents the introduction of the same specific volume of air at every coupling operation.

2: Robust, protected locking mechanism

Great number of large cross section balls, that are completely insulated and that cannot clog.

Coupling and uncoupling in one movement,one-handed

4: Protected sealing parts

Sealing faces and seals protected from external impacts.

6: Reduced pressure drop

The circuit is specifically designed to allow direct flow of the fluid stream without breaking the stream and without any turbulence. The resulting pressure drops are very small.

7: Instant visual circuit identification.

Fast circuit identification by coloured rings: colourless,blue,red

8: Applications

Automatic opening of this valve allows the volume of oil necessary for the backward movement of the

valve to be released into the hose that is not under pressure.

Technical data

Protective dust caps

Connection under residual pressure

Tightness

Identification of the circuits

KB = blue rings

Ex. : SBA 08.1103/KR - SBA 08.7103/KR
