Everything You Need to Know About NPT (National Pipe Tapered) Connection Types

Views: 104     Author: Site Editor     Publish Time: 2023-08-09      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

In plumbing systems, the type of connections used plays a crucial role in ensuring the overall functionality and efficiency of the system. One widely used connection type is the NPT, which stands for National Pipe Tapered. NPT connections are known for their reliability and versatility, making them a popular choice in various industries. From residential plumbing to industrial applications, NPT connections provide a secure and leak-free seal, ensuring the smooth flow of liquids or gases.

In this article, we will delve into the world of NPT connections, providing you with a comprehensive understanding of their features, benefits, and applications. Whether you are a homeowner looking to understand the plumbing system in your house or a professional plumber seeking to enhance your knowledge, this article is designed to equip you with all the necessary information about NPT connections. From explaining the tapering design to discussing the different types of NPT threads, we will cover it all. So, let's dive in and explore the world of NPT connections to ensure a reliable and efficient plumbing system.

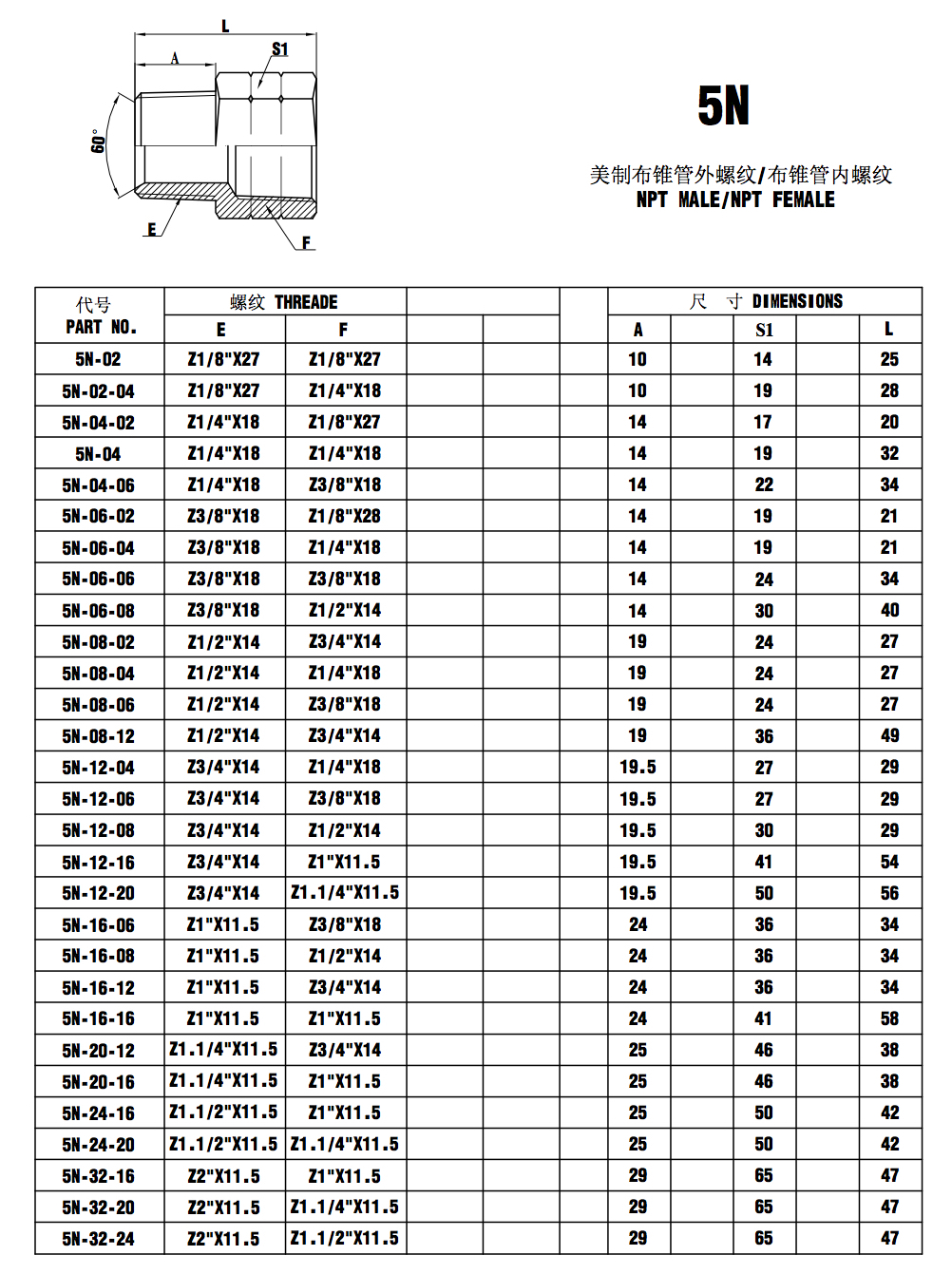

 5N NPT MALE/NPT FEMALE hydraulic pipe fittings suppliers

Understanding NPT Connections

Definition and Background of NPT Connections

NPT (National Pipe Tapered) connection types are widely used in various industries, including plumbing, oil and gas, and manufacturing. These connections are designed to provide a reliable and leak-free seal between pipes and fittings. The NPT standard was developed by the American National Standards Institute (ANSI) to ensure compatibility and interchangeability of pipe fittings.

The NPT connection features a tapered thread design, which means that the diameter of the threads decreases gradually towards the end of the pipe. This tapering design plays a crucial role in creating a tight seal between the male and female threads. The threads are cut at an angle of 60 degrees, allowing them to wedge together tightly when the connection is tightened.

The Tapering Design and Its Significance in Creating a Seal

The tapering design of NPT connections is essential for creating a reliable seal that can withstand high pressure and prevent leaks. When the male and female threads are tightened, the tapered surfaces come into contact, creating a metal-to-metal seal. This seal is highly effective in preventing fluid or gas leakage, making NPT connections suitable for applications where a secure and leak-free joint is required.

The tapering design also provides self-sealing properties, which means that the more the connection is tightened, the tighter the seal becomes. This is due to the wedging action of the tapered threads, which compresses the material and creates a tighter seal. However, it is important to note that over-tightening the connection can lead to thread damage or even breakage, so it is crucial to follow proper installation techniques.

The Different Components Involved in an NPT Connection

An NPT connection consists of two main components: the male and female threads. The male thread is found on the outside of the pipe or fitting, while the female thread is found on the inside. The male thread has a tapered end, while the female thread has a corresponding tapered opening.

To create a secure connection, the male thread is inserted into the female thread and tightened by rotating it clockwise. As the threads engage, the tapered surfaces come into contact, creating a seal. It is important to ensure that the threads are properly aligned before tightening to avoid cross-threading, which can result in a faulty connection.

Importance of Proper Installation Techniques for NPT Connections

Proper installation techniques are crucial for ensuring the integrity and longevity of NPT connections. One of the key aspects of installation is using the correct amount of torque when tightening the connection. Under-tightening can result in a loose connection and potential leaks, while over-tightening can damage the threads and compromise the seal.

Another important consideration is the use of thread sealants or tape. These products help to enhance the seal by filling any gaps or imperfections in the threads. It is important to choose a sealant or tape that is compatible with the fluid or gas being transported and to apply it correctly according to the manufacturer's instructions.

Regular inspection and maintenance of NPT connections are also essential to identify any signs of wear, corrosion, or damage. Any damaged or worn-out connections should be replaced immediately to prevent leaks and ensure the safety of the system.

Advantages of NPT Connections

The benefits of using NPT connections in various applications

NPT (National Pipe Tapered) connections are widely used in various industries due to their numerous advantages. One of the key benefits of NPT connections is their ability to provide a secure and leak-free joint. The tapered threads of NPT connections create a tight seal, preventing any leakage of fluids or gases. This makes NPT connections ideal for applications where reliability and safety are paramount, such as in plumbing, oil and gas, and chemical industries.

The versatility and compatibility of NPT connections with different pipe materials

Another advantage of NPT connections is their versatility and compatibility with different pipe materials. NPT connections can be used with a wide range of materials, including steel, brass, and plastic. This flexibility allows for seamless integration of NPT connections into existing piping systems, regardless of the material used. Whether it's a high-pressure hydraulic system or a low-pressure water supply, NPT connections can be relied upon to provide a secure and durable joint.

The ability of NPT connections to withstand high pressure and temperature conditions

NPT connections are known for their ability to withstand high pressure and temperature conditions. The tapered threads of NPT connections provide a strong and reliable joint that can handle extreme operating conditions. This makes NPT connections suitable for applications where there is a need for high-pressure fluid or gas transfer, such as in steam systems or oil refineries. The robustness of NPT connections ensures that they can withstand the rigors of demanding environments without compromising the integrity of the joint.

The cost-effectiveness and ease of installation compared to other connection types

In addition to their performance capabilities, NPT connections offer cost-effectiveness and ease of installation compared to other connection types. NPT connections are relatively simple to install, requiring only basic tools and techniques. This ease of installation translates into time and cost savings for both initial installation and maintenance. Furthermore, NPT connections are readily available in the market, making them a cost-effective choice for various applications.

NPT connections also have the advantage of being reusable. Unlike some other connection types that require replacement after disassembly, NPT connections can be easily reassembled and reused without compromising their sealing capabilities. This not only reduces the overall cost of the system but also contributes to sustainability efforts by minimizing waste.

Common Applications of NPT Connections

The examples of industries and systems where NPT connections are commonly used

NPT (National Pipe Tapered) connections are widely used in various industries and systems due to their versatility and reliability. One of the primary industries that extensively relies on NPT connections is plumbing. Whether it's in residential or commercial settings, NPT connections are commonly found in plumbing systems for water supply, drainage, and sewage. The tapered threads of NPT connections provide a secure and leak-free joint, making them ideal for ensuring the smooth flow of water in plumbing applications.

Another industry where NPT connections are commonly utilized is the gas industry. NPT connections are commonly used in gas pipelines, gas meters, and gas appliances. The tapered threads of NPT connections help to create a tight seal, preventing any gas leaks and ensuring the safety of the system. These connections are also commonly found in natural gas distribution systems, where they provide a reliable and durable solution for connecting pipes and fittings.

The oil industry is yet another sector where NPT connections find widespread use. From oil refineries to drilling operations, NPT connections are commonly employed for their ability to handle high-pressure environments. These connections are utilized in various applications within the oil industry, including oil pipelines, wellheads, and oil storage tanks. The tapered threads of NPT connections allow for easy installation and provide a robust and leak-resistant joint, making them suitable for the demanding conditions of the oil industry.

The suitability of NPT connections for both residential and commercial applications

NPT connections are highly suitable for both residential and commercial applications due to their numerous advantages. In residential settings, NPT connections are commonly used in plumbing systems for connecting pipes, fittings, and fixtures. The tapered threads of NPT connections allow for a tight and secure joint, ensuring that there are no leaks or water wastage. This is especially important in residential applications where water conservation is a priority. NPT connections also provide ease of installation, making them a preferred choice for homeowners and plumbers alike.

In commercial applications, NPT connections offer similar benefits. Whether it's in commercial buildings, industrial facilities, or public infrastructure, NPT connections are widely used in plumbing systems. These connections provide a reliable and durable solution for connecting pipes and fittings, even in high-pressure environments. The tapered threads of NPT connections ensure a tight seal, minimizing the risk of leaks and ensuring the efficient flow of water or other fluids. Moreover, NPT connections are readily available and cost-effective, making them a practical choice for commercial applications.

The specific use cases and scenarios where NPT connections excel

NPT connections excel in various use cases and scenarios, thanks to their unique design and functionality. One specific use case where NPT connections are highly effective is in hydraulic systems. These connections are commonly used in hydraulic fluid lines, where they provide a secure and leak-free joint. The tapered threads of NPT connections help to prevent any fluid leakage, ensuring the optimal performance of the hydraulic system. Whether it's in heavy machinery or automotive applications, NPT connections play a crucial role in maintaining the integrity of hydraulic systems.

Another scenario where NPT connections excel is in pneumatic systems. NPT connections are commonly used in air compressors, pneumatic tools, and pneumatic control systems. The tapered threads of NPT connections ensure a tight seal, preventing any air leakage and maintaining the desired pressure levels. These connections are particularly useful in industries such as manufacturing, construction, and automotive, where pneumatic systems are extensively employed. NPT connections provide a reliable and efficient solution for connecting various components of pneumatic systems.

Furthermore, NPT connections are often utilized in irrigation systems. Whether it's for agricultural purposes or landscaping, NPT connections offer a practical solution for connecting pipes and fittings in irrigation systems. The tapered threads of NPT connections allow for easy installation and provide a secure joint that can withstand the high water pressure typically required in irrigation applications. These connections ensure a consistent water supply to crops or gardens, promoting healthy growth and efficient water distribution.

1N4 45°NPT MALE ELBOW pipe fittings suppliers

Installation and Maintenance of NPT Connections

Step-by-step guide on how to properly install NPT connections

When it comes to installing NPT connections, following the correct steps is crucial to ensure a secure and leak-free connection. Here is a step-by-step guide to help you properly install NPT connections:

Step 1: Prepare the pipe and fitting

Before starting the installation process, it is important to prepare the pipe and fitting properly. Ensure that both the pipe and fitting are clean and free from any dirt, debris, or rust. Use a wire brush or sandpaper to remove any residue and create a smooth surface for the connection.

Step 2: Apply the appropriate sealant

To achieve a leak-free connection, it is essential to apply the right sealant. Teflon tape is commonly used for NPT connections as it provides a reliable seal. Start by wrapping the tape in the opposite direction of the threads, ensuring complete coverage. Apply two to three layers of tape, pressing it firmly into the threads.

Step 3: Hand-tighten the connection

Once the sealant is applied, hand-tighten the connection. Begin by aligning the threads and start turning the fitting clockwise onto the pipe. Use your hand to tighten the connection as much as possible. Ensure that the fitting is properly aligned and seated on the pipe.

Step 4: Use appropriate tools for final tightening

To achieve the recommended tightness, it is essential to use appropriate tools for the final tightening. A pipe wrench or adjustable wrench can be used to further tighten the connection. However, be cautious not to over-tighten, as it may damage the threads or cause the fitting to crack.

The importance of using appropriate tools and sealants for a leak-free connection

Using appropriate tools and sealants is crucial when it comes to achieving a leak-free NPT connection. Here's why it is important:

1. Preventing leaks and failures

By using the right tools and sealants, you can significantly reduce the risk of leaks and failures in NPT connections. The sealant creates a tight seal between the threads, preventing any fluid or gas from escaping. Additionally, using appropriate tools ensures that the connection is properly tightened, minimizing the chances of leakage.

2. Ensuring safety and reliability

Properly installed NPT connections are essential for the safety and reliability of the overall system. Leaks in connections can lead to hazardous situations, especially in industries where the transported fluids or gases are flammable or toxic. By using appropriate tools and sealants, you can ensure the integrity of the connection, promoting safety and reliability.

3. Extending the lifespan of the connection

Using the right tools and sealants not only prevents leaks but also extends the lifespan of the NPT connection. Proper installation and maintenance techniques help to minimize wear and tear on the threads, reducing the risk of damage or failure over time. This ensures that the connection remains secure and functional for an extended period.

The best practices for maintaining and inspecting NPT connections to ensure their longevity

To ensure the longevity of NPT connections, it is essential to follow best practices for their maintenance and inspection. Here are some key practices to consider:

Regular inspection

Regularly inspecting NPT connections is crucial to identify any signs of wear, damage, or leakage. Visual inspection can help detect issues such as loose fittings, corrosion, or cracks. It is recommended to conduct inspections periodically or as part of a routine maintenance schedule.

Proper cleaning and lubrication

Cleaning and lubricating NPT connections can help maintain their performance and prevent issues such as seizing or galling. Use appropriate cleaning agents to remove any dirt or debris from the threads. Apply a suitable lubricant to ensure smooth assembly and disassembly of the connections.

Torque checks

Periodically checking the torque of NPT connections is important to ensure they are properly tightened. Over time, vibrations or temperature changes can cause connections to loosen. By conducting torque checks, you can identify any loose fittings and tighten them promptly to prevent leaks or failures.

Replacement of worn components

If any components of the NPT connection, such as the pipe or fitting, show signs of significant wear or damage, it is crucial to replace them promptly. Continuing to use worn components can compromise the integrity of the connection and increase the risk of leaks or failures.

Troubleshooting NPT Connections

Identify common issues and challenges that may arise with NPT connections

NPT (National Pipe Tapered) connection types are widely used in various industries for joining pipes and fittings. While these connections are known for their reliability and durability, there are certain issues and challenges that may arise. One common issue is leaks, which can occur due to a variety of reasons such as improper installation, worn-out threads, or damaged sealing surfaces. Another challenge is thread damage, which can result from over-tightening, corrosion, or using incompatible materials. Additionally, other problems like thread galling, misalignment, or inadequate sealing can also impact the performance of NPT connections.

The troubleshooting tips and techniques for addressing leaks, thread damage, and other problems

To address leaks in NPT connections, it is important to first identify the source of the leak. Start by visually inspecting the connection for any visible signs of leakage. If no visible signs are present, you can use a leak detection solution or soapy water to check for small leaks. Once the source is identified, you can take appropriate actions such as tightening the connection, replacing damaged threads, or reapplying sealant. It is crucial to ensure that the threads are properly aligned and the sealing surfaces are clean and free from debris before reassembling the connection.

When it comes to thread damage, prevention is key. Avoid over-tightening the connection as it can lead to thread deformation or stripping. Use a torque wrench to tighten the connection to the manufacturer's recommended specifications. If thread damage has already occurred, it may be necessary to use thread repair tools or replace the damaged component. It is important to use compatible materials and avoid mixing different types of metals to prevent galvanic corrosion, which can weaken the threads and compromise the connection's integrity.

In addition to leaks and thread damage, other problems like thread galling, misalignment, or inadequate sealing can also affect NPT connections. Thread galling, also known as cold welding, can occur when the threads seize or lock together during assembly. To prevent this, apply an anti-seize compound or lubricant to the threads before assembly. Misalignment can be addressed by ensuring that the pipes and fittings are properly aligned before tightening the connection. Inadequate sealing can be resolved by using the appropriate sealant or tape and ensuring that it is applied correctly.

The importance of seeking professional assistance for complex issues

While many common issues with NPT connections can be addressed using the troubleshooting tips mentioned above, it is important to recognize the limits of DIY solutions. Complex issues such as severe thread damage, extensive leaks, or issues with critical systems should be addressed by professionals with expertise in pipe connections. Seeking professional assistance ensures that the problem is properly diagnosed and resolved, minimizing the risk of further damage or safety hazards. Professionals can also provide guidance on preventive maintenance practices and recommend suitable materials or components for specific applications.

Safety Considerations with NPT Connections

The potential hazards associated with NPT connections if not installed or maintained correctly

When it comes to NPT (National Pipe Tapered) connection types, it is crucial to understand the potential hazards that can arise if they are not installed or maintained correctly. One of the primary concerns is the risk of leaks. Due to the tapered design of NPT connections, there is a higher chance of leakage compared to other connection types. This can lead to various safety issues, including environmental contamination, equipment damage, and even personal injury.

Improper installation of NPT connections can result in thread damage or insufficient sealing, which can lead to leaks. The threads of NPT connections are prone to damage if excessive force is applied during installation. It is essential to use the correct tools and techniques to ensure a proper fit and avoid thread damage. Additionally, using thread sealants or tape designed specifically for NPT connections can help prevent leaks and ensure a secure connection.

Another hazard associated with NPT connections is the potential for corrosion. If the pipes or fittings are made from materials that are not compatible or if they are exposed to corrosive substances, it can lead to the deterioration of the connection over time. Corrosion weakens the integrity of the connection, making it more susceptible to leaks and failures. Regular inspection and maintenance are necessary to identify any signs of corrosion and take appropriate measures to prevent further damage.

The safety precautions to follow when working with NPT connections, such as handling high-pressure systems and using appropriate personal protective equipment

Working with NPT connections involves handling high-pressure systems, which requires strict adherence to safety precautions. First and foremost, it is crucial to ensure that the system is depressurized before attempting any installation, maintenance, or repair work. This can be done by shutting off the relevant valves and releasing any trapped pressure. Failure to depressurize the system can result in sudden releases of high-pressure fluids, posing a significant risk to the safety of the workers involved.

Personal protective equipment (PPE) plays a vital role in ensuring the safety of individuals working with NPT connections. When dealing with high-pressure systems, it is essential to wear appropriate PPE, such as safety goggles, gloves, and protective clothing. Safety goggles protect the eyes from potential leaks or sprays, while gloves provide hand protection against sharp edges or corrosive substances. Protective clothing, such as coveralls or aprons, can shield the body from potential splashes or spills.

In addition to PPE, it is essential to follow proper handling techniques when working with NPT connections. This includes using the correct tools for the job and applying the appropriate amount of torque during installation. Over-tightening can damage the threads, while under-tightening can result in leaks. It is crucial to strike the right balance to ensure a secure and leak-free connection.

Regular inspection and maintenance are essential to identify any potential safety hazards associated with NPT connections. This includes checking for signs of leakage, corrosion, or damage to the threads. Any issues should be addressed promptly to prevent further deterioration and ensure the continued safety and reliability of the system.

Conclusion

In conclusion, NPT connections are widely used in various industries and systems for their secure and leak-free joints. They offer advantages such as compatibility with different pipe materials, resistance to high pressure and temperature conditions, and cost-effectiveness. Proper installation and maintenance are crucial for achieving reliable connections, and troubleshooting tips can help address common issues. Understanding the safety considerations associated with NPT connections is also important to ensure the safe operation of systems.

Frequently Asked Questions

Q: What is the difference between NPT and NPTF connections?

A: NPT (National Pipe Thread) and NPTF (National Pipe Thread Fuel) connections are both tapered pipe threads. The main difference is that NPTF has a larger thread root diameter and a smaller thread crest diameter compared to NPT. This difference allows NPTF connections to create a tighter seal, making them more suitable for applications that require a leak-free connection.

Q: Can NPT connections be used for both gas and liquid applications?

A: Yes, NPT connections can be used for both gas and liquid applications. However, it is important to consider the specific requirements of the application and ensure that the chosen materials and sealants are compatible with the intended fluid or gas.

Q: Are NPT connections compatible with plastic pipes?

A: NPT connections are generally compatible with plastic pipes. However, it is important to consider the specific type of plastic being used and ensure that the chosen NPT connection is compatible with that particular material. Some plastics may require special adapters or fittings to ensure a proper and secure connection.
