SAE leh NPT thread te a awm bawk.

Industrial fittings leh adapter ka exploration lai hian thil ngaihnawm tak tak ka tawng a: SAE leh NPT threads. Kan machinery-a behind-the-scenes arsi angin han ngaihtuah teh. A hmasa berah chuan an inang viau mai thei a, mahse a takah chuan an design dan te, an hnathawh danah te, leh thil an seal up danah te an danglam hle. Heng thread chungchanga ka thil zir te hi ka rawn share ve dawn a, ka lawm hle. Dive in la, eng thil nge an danglamna leh kan machine te hnathawh that zawk leh rei zawk daih tura an pawimawh chhan hi han ngaihtuah teh.

SAE thread hriatthiamna .

SAE thread-a hrilhfiahna leh chi hrang hrang leh a nihna .

SAE thread hi automotive leh hydraulics industry-a hman tam tak precision thread a ni. Heng thread te hian Society of Automotive Engineers (SAE)-in standard a siamte a zawm a ni. SAE thread chi hrang hrang a awm a, mahse a tam ber chu straight thread O-ring boss (orb) a ni. He type hian thread dik tak leh seal siam thei tura siam O-ring a nei a. SAE J514 tube fittings standard hian heng thread hrang hrangte specification a tarlang a.

SAE thread-te mizia hrang hrangte chu:

l  uniform diameters . bik atan Bolt size

l  straight design . hman theihna tur O-ring

l  atan a inmil a ni. SAE J518  Standard chu flange fittings

Hydraulics-a hman dan leh a relevance .

Hydraulics-ah chuan SAE thread hi a pawimawh hle. High-pressure system-a leak-free connection an neih theih nan an enkawl a ni. O-ring boss fittings te hi a bik takin a relevant hle a, a chhan chu leakage awm lovin hydraulic fluid hrang hrang a handle thei a ni. SAE Male connector leh SAE female connector te hi SAE fittings connecting-ah an pawimawh hle a, system nghet tak an siam thei a ni.

Dilnaah hian:

l  Hydraulic pump 1000 a ni.

l  Valve te .

L  Cylinder 1000 a ni.

Heng thread te hian system integrity an vawng reng a, fluid leakage a veng a, hei hi himna leh efficiency atan a pawimawh hle.

SAE thread size leh identification .

SAE thread size hriat chian hi a awlsam hle. Thread tin hi dash number (eg, -4, -6, -8) hmanga designate a ni a, chu chu inch sawm leh paruk chhunga thread size nen a inmil a ni. Entirnan, -8 thread size tih hian thread diameter chu 8/16 emaw 1/2 inch emaw a ni tihna a ni.

SAE thread hriat theihna tur:

1. Mipa thread pawn lam diameter emaw hmeichhe thread chhung lam diameter emaw teh rawh.

2. Inch khata thread awm zat chhiar la (TPI).

SAE J518 standard bakah hian international standards DIN 20066, ISO/DIS 6162, leh JIS B 8363 te nen SAE thread size hrang hrangte tana kaihhruaina kimchang tak a pe a, flange clamp dimension leh bolt size dik tak te pawh a huam tel bawk.

A tawi zawngin, SAE thread te hi hydraulic system-ah chuan a pawimawh hle a, seal rintlak leh tangkai tak a ni. An standardized size leh type te, straight thread O-ring boss te hian industry-a professional-te tan go-to choice a siam a ni. Hydraulic fitting leh adapter buaipuitu tan chuan heng thread te hi hriatthiam a pawimawh hle.

SAE thread size leh specification hrang hrangte chipchiar taka tarlanna

SAE thread chart leh tehna chungchang tlangpui .

SAE thread chart kan sawi hian hydraulic pipe leh fittings inzawmkhawmna atana hman thin thread lian leh te tehna system kan sawi a ni. SAE thread type hi hydraulic system-a connection him leh leak-free a awm theihna tura thil pawimawh tak a ni. NPT thread emaw national pipe tapered thread, tapered design nei ang lo takin SAE thread hi a dinglam a ni fo a, watertight seal din turin O-ring a ngai a ni.

SAE mipa leh hmeichhia connector specification .

SAE Male Connector leh SAE Female Connector parts te nena thawk ho tan chuan an specification hriatthiam a pawimawh hle. SAE mipa connector hian a tlangpuiin pawn lam thread a nei a, SAE female connector hian internal thread a nei a, chu chu a inzawm tlat theih nan a siam a ni. SAE fittings i connect dawn chuan mipa leh hmeichhia component te chu a inmil tur a pawimawh a, chu chuan leak a awm loh nan leh a performance tha ber tur a siamsak a ni.

L  Sae Male Connector : Pawn lam thread, O-ring boss  leh flange clamp  system hmanga hman thin.

L  SAE Female Connector : Internal thread, mipa connector nena inmil leh fit him tak siam thei tura duan a ni.

SAE 45° flare thread dimensions thuk taka zirchianna

SAE 45° flare thread hi hydraulic hmanna hrang hranga hman tur fitting chi khat bik a ni. A dimensions te chu standardized a ni a, chu chuan inzawmna mumal leh rintlak tak a siam thei a ni. 45-degree flare angle hi a pawimawh hle a, metal-to-metal sealing a phal avangin, mipa fitting-a flare nose chu hmeichhe fitting flared tubing-ah a compress a ni. He design hian PTFE (polytetrafluoroethylene) tape emaw sealant compound emaw ang chi sealing mechanism dang mamawhna a ti bo a ni.

L  Bolt Sizes : SAE J518 , DIN 20066 , ISO/DIS 6162 hmanga hman theih tura standardized , leh JIS B 8363.

L  O Ring : Seal siam nan a pawimawh hle a, straight thread O-ring boss  fittings hmanga siam a ni.

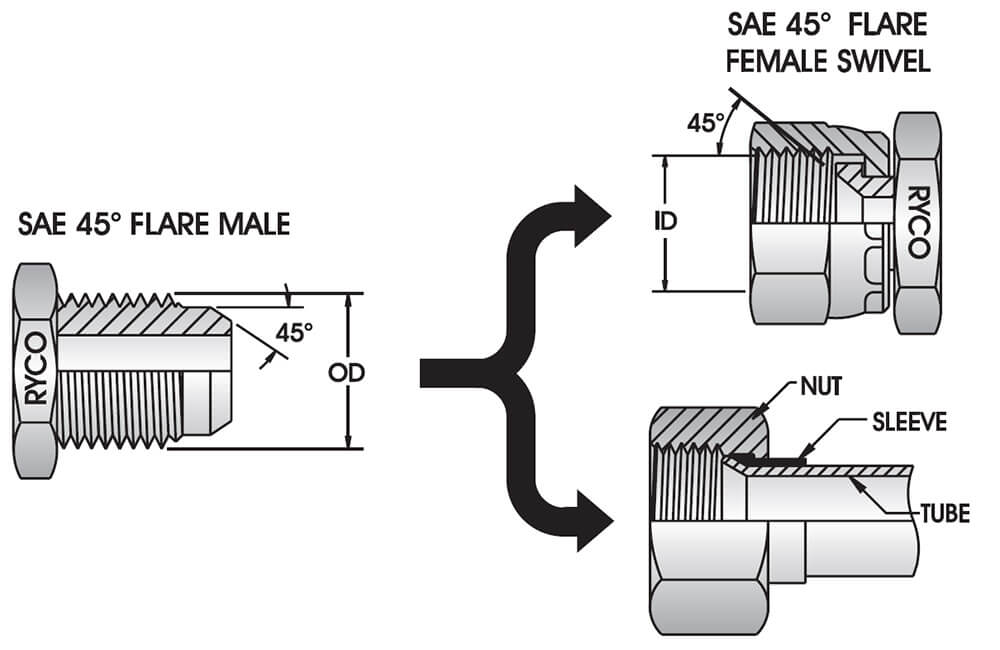

SAE 45° flare  – SAE J512 Threads a awm em?

mipa thread od & pitch .	Dash size 1000 a ni.	mipa thread od .		Hmeichhe Thread Id .		Tube lian tham tak a ni.
inch – TPI a ni.		mm a ni .	inch 10 a ni.	mm a ni .	inch 10 a ni.	inch 10 a ni.
5/16 – 24 a ni.	-05	7.9	0.31	6.8	0.27	1/8 a ni.
3/8 – 24 a ni.	-06	9.5	0.38	8.4	0.33	3/16 a ni.
7/16 – 20 a ni.	-07	11.1	0.44	9.9	0.39	1/4 a ni.
1/2 – 20 a ni.	-08	12.7	0.50	11.4	0.44	5/16 a ni.
5/8 – 18 a ni.	-10	15.9	0.63	14.2	0.56	3/8 a ni.
3/4 – 16 a ni.	-12	19.1	0.75	17.5	0.69	1/2 a ni.
7/8 – 14 a ni.	-14	22.2	0.88	20.6	0.81	5/8 a ni.
1.1/16 – 14 a ni.	-17	27.0	1.06	24.9	0.98	3/4 a ni.

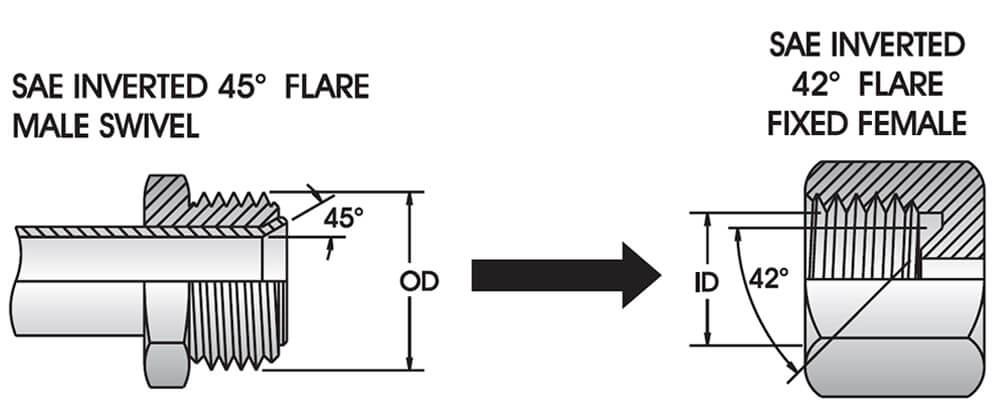

SAE 45o inverted flare – SAE J512 Threads dimensions

mipa thread od & pitch .	Dash size 1000 a ni.	mipa thread od .		Hmeichhe Thread Id .		Tube lian tham tak a ni.
inch – TPI a ni.		mm a ni .	inch 10 a ni.	mm a ni .	inch 10 a ni.	inch 10 a ni.
7/16 – 24 a ni.	-07	11.1	0.44	9.9	0.39	1/4 a ni.
1/2 – 20 a ni.	-08	12.7	0.50	11.4	0.45	5/16 a ni.
5/8 – 18 a ni.	-10	15.9	0.63	14.2	0.56	3/8 a ni.
11/16 – 18 a ni.	-11	17.5	0.69	16.0	0.63	7/16 a ni.

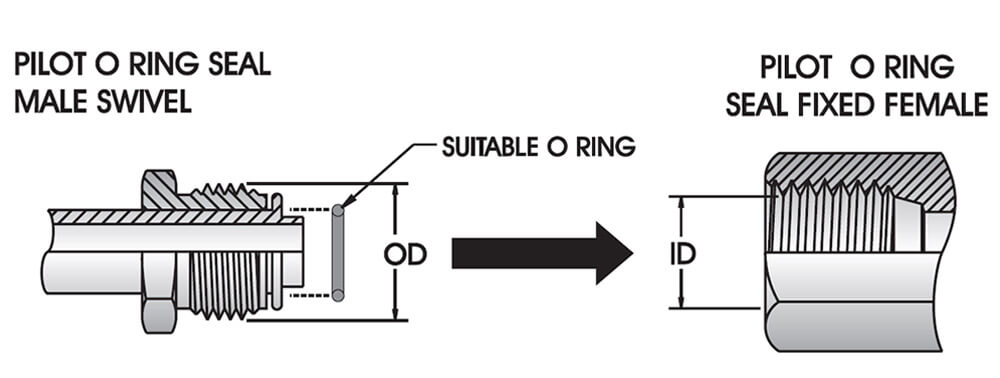

Sae Pilot O Ring Seals Pilot mipa swivel threads dimensions .

mipa thread od & pitch .	Dash size 1000 a ni.	mipa thread od .		Hmeichhe Thread Id .		Tube lian tham tak a ni.
inch – TPI a ni.		mm a ni .	inch 10 a ni.	mm a ni .	inch 10 a ni.	inch 10 a ni.
5/8 – 18 a ni.	-10	15.9	0.63	14.2	0.56	-6
3/4 – 18 a ni.	-12	19.0	0.75	17.8	0.70	-8
7/8 – 18 a ni.	-14	22.2	0.88	20.6	0.81	-10

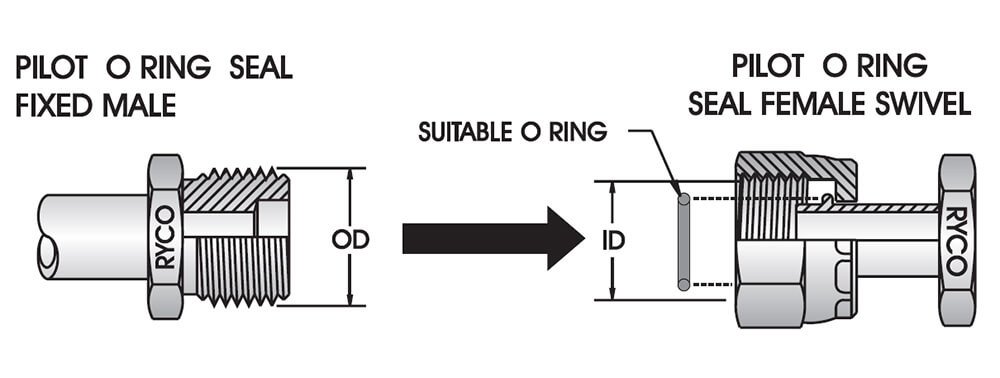

Pilot hmeichhe swivel threads dimensions .

mipa thread od & pitch .	Dash size 1000 a ni.	mipa thread od .		Hmeichhe Thread Id .		Tube lian tham tak a ni.
inch – TPI a ni.		mm a ni .	inch 10 a ni.	mm a ni .	inch 10 a ni.	inch 10 a ni.
5/8 – 18 a ni.	-10	15.9	0.63	14.2	0.56	-6
3/4 – 16 a ni.	-12	19.0	0.75	17.5	0.69	-8
3/4 – 16 a ni.	-12	19.0	0.75	17.5	0.69	-8

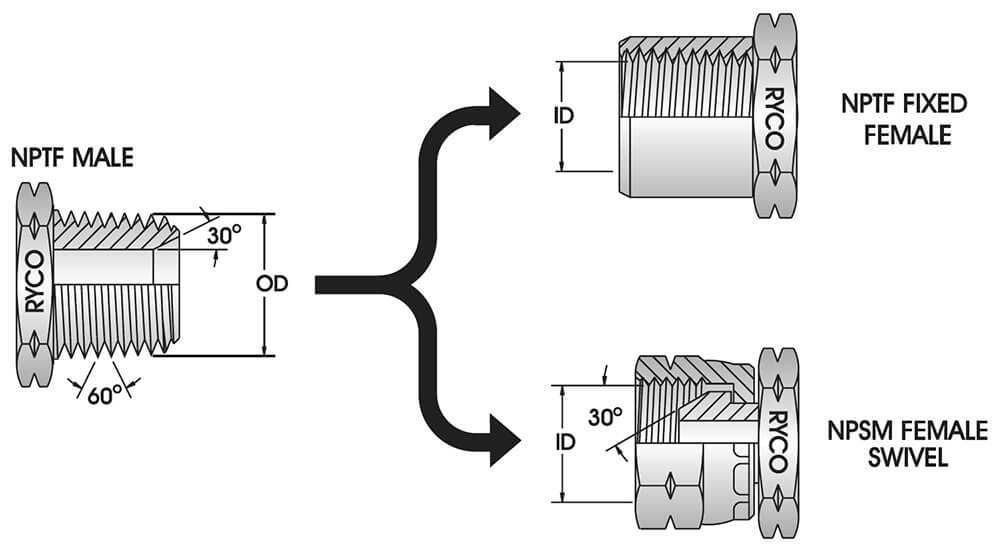

NPT thread hrang hrangte chhui chhuahna .

NPT thread te hi eng nge ni? – A tlangpui .

NPT thread, emaw national pipe tapered thread te hi pipe joint sealing atana hman tlanglawn screw thread chi khat a ni. He design hian a tapered profile avang hian leak-free connection a awm theih nan a enkawl a, chu chu fitting chu pipe chhunga thread a nih chuan a nghet zual zel a ni. Taper hian thread te chu squeeze khawmin seal a siam a, a tam zawkah chuan PTFE tape emaw sealant compound emaw hmanga gap awm apiang luah khat turin a tichak a ni.

A chipchiar zawng chu NPT Thread Dimensions chart a ni.

NPT thread kan buaipui hian tehna dik tak neih a pawimawh hle. Hetah hian NPT thread dimensions chart awlsam zawk kan rawn tarlang e:

NPT Thread size leh pitch .	Dash size 1000 a ni.	mipa thread minor od .		Hmeichhe Thread Id .
inch – TPI a ni.		mm a ni .	inch 10 a ni.	mm a ni .	inch 10 a ni.
1/8 – 27 a ni.	-02	9.9	0.39	8.4		0.33
1/4 – 18 a ni.	-04	13.2	0.52	11.2		0.44
3/8 – 18 a ni.	-06	16.6	0.65	14.7		0.58
1/2 – 14 a ni.	-08	20.6	0.81	17.8		0.70
3/4 – 14 a ni.	-12	26.0	1.02	23.4		0.92
1 – 11.1/2 a ni.	-16	32.5	1.28	29.5		1.16
1.1/4 – 11.1/2 a ni.	-20	41.2	1.62	38.1		1.50
1.1/2 – 11.1/2 a ni.	-24	47.3	1.86	43.9		1.73
2 – 11.1/2 a ni.	-32	59.3	2.33	56.4		2.22
2.1/2 – 8 a ni.	-40	71.5	2.82	69.1		2.72
3 – 8 a ni.	-48	87.3	3.44	84.8		3.34



NPT thread te chu industrial application ah a awm a.

NPT thread hi industrial setting hrang hrangah a pawimawh hle. Anni hi hydraulic fluid enkawltu system-ah an awm fo a, chutah chuan pressure-tight seal him tak, pressure-tight seal a ngai a ni. NPT adapter hmang hian hose leh pipe lian leh te, thread chi dang atanga SAE thread type ang chi, NPT thlenga inthlak nan emaw hman a ni. SAE fittings, straight thread O-ring boss system hmang thei tur connect-naah hian adapter te hian NPT-threaded components nena inmilna an siam thei a ni.

NPT thread size leh standard te hriatchhuah .

NPT thread hriat chian nan chuan inch khata pawn lam diameter leh thread awm zat hriat a ngai ang. Hetah hian quick guide kan rawn tarlang e:

1. Mipa thread pawn lam diameter emaw hmeichhe thread chhung lam diameter emaw teh rawh.

2. TPI hriat theih nan inch khat span chhunga thread peaks awm zat chhiar rawh.

3. Heng tehnate hi standard NPT chart nen khaikhin la, NPT size inmil zawng rawh.

NPT thread te hian secure fit an neih theih nan engagement mumal tak an mamawh tih hriat a pawimawh. Hei hian a awmzia chu mipa leh hmeichhia thread chu leak awm loh nan screw tawk taka inzawmkhawm tur a ni a, mahse chhiatna thlen thei tur khawpa khauh loh tur a ni.



SAE leh NPT Threads te tehkhin dan

Thread Design: Dinglam leh Tapered te

SAE Thread Type leh NPT Thread te kan enfiah hian an design-ah hian danglamna bulpui tak a awm tih a lang. SAE thread, a bik takin Straight Thread O-Ring Boss te hi an straight thread pattern vang a ni. He design hian thread sei zawng zawngah diameter inang tlang a siam thei a ni. Chumi danglamna chu National Pipe Tapered Threads (NPT) te hian tapered profile an nei a, thread axis-a an kal zel chuan a tawi chho zel a ni.

l  SAE : Thread dinglam, a diameter inang tlang.

l  NPT : Thread tapered, thread zawh zawnga diameter a tlahniam.

Sealing Techniques: O-Ring leh Taper leh Sealants te

Sealing integrity hi leak venna atan a pawimawh hle. SAE Male Connector leh SAE Female Connector te hian O-Ring hmangin seal an siam fo thin. He O-Ring hi groove-ah a thu a, a tihkhauh chuan a compress a, leak awm lohna turin barrier a siam a ni. Hetihlai hian NPT thread-te tapered design-ah chuan kalphung danglam tak a ngai a ni. Taper hian thread te chu screw in a nih rualin a fit nghet zawk a, watertight connection a siam a ni. Hetiang effect tihpun nan hian NPT thread-ah hian PTFE (Polytetrafluoroethylene) tape emaw sealant compound emaw an hnawih tlangpui.

l  SAE : O-Ring a hmang thin. Sealing atan

l  NPT : tapered design leh sealant dang a rinchhan atan Leak-free connection .

Situational Advantages: SAE emaw NPT emaw hman hun tur

SAE leh NPT fittings thlan dan hi a hman dan bik leh industry standard-ah a innghat fo thin. SAE J514 tube fittings hi hydraulic system-ah hian an hmang nasa hle a, a chhan chu an sealing mechanism nghet tak leh pressure sang tak tuar thei an nih vang a ni. SAE J518, DIN 20066, ISO/DIS 6162, leh JIS B 8363 te ang chi standard zawm tura siam an ni a, heng fittings te hi hydraulic fluid enkawlna huna connection rintlak siamna atan a tha hle.

NPT fittings erawh chu general plumbing leh air system-ah hmuh tur a awm fo thung. American National Standard Pipe Thread (ANSI/ASME B1.20.1) hi heng tapered thread te tan hian standard hman tlanglawn tak a ni. NPT adapter hi straight thread mamawh lohna emaw O-Ring hman theih lohna hmuna hman tur atan a tha hle.

l  SAE : High-pressure hydraulic system atan chuan a tha zawk.

l  NPT : Plumbing leh pressure hniam zawka hmannaah a awm fo.

SAE leh NPT Threaded Fittings Install dan tha ber ber

SAE fittings connect dawn chuan precision hi a pawimawh ber. SAE Male Connector dik tak emaw SAE Female Connector emaw thlangin tan la rawh. SAE J518, DIN 20066, emaw ISO/DIS 6162 ang chi standard nena inmil tur a ni.Secure fit atan O-ring leh flange clamp hmang ang che. Bolt size te chu specification nen align la, thread stripping loh nan.

ANSI/ASME B1.20.1-in a enkawl NPT thread connection-ah hian kalphung danglam tak a ngai a ni. MPT-ah hian PTFE tape emaw sealant compound ha tak emaw hnawih la, an design tapered avangin tui tlak lohna a awm theih nan. Tight lutuk hi pumpelh tur a ni; a ti chhe thei a, thread te pawh a tichhe thei bawk.

Maintenance leh Troubleshooting chungchanga harsatna awm fo thin

Hydraulic system tan chuan check mumal hi a pawimawh hle. SAE J514 tube fittings leh NPT adapter-ah te hian a chhe tawh tih chhinchhiahna zawng rawh. Leak a awm chuan O-Ring Boss hi enfiah la, a chhiat chuan thlak leh rawh. NPT thread chungchangah chuan PTFE tape hi reapplication a ngai em tih enfiah thin ang che. Maintenance kit chu spare O-rings, sealant compound, leh PTFE tape te nen i kutah dah fo ang che.

Hydraulic System-a dam rei leh hman tangkai theihna tur ruahmanna siam

System integrity vawng reng tur chuan heng step te hi zawm tur a ni:

1. Hydraulic fluid dik tak hmang rawh.

2. Connection zawng zawng enfiahna hun ruahman.

3. Component chhe tawhte chu thlak nghal rawh.

4. Threaded pipe leh pipe fittings te chu a chhe lo atanga fai taka dah tur a ni.

5. System performance a inthlak danglam leh awm loh enfiah thin.

Heng kaihhruainate zawm hian leak-free connection i siam thei a, i hydraulic system dam chhung pawh i ti rei thei bawk. SAE Thread Type emaw NPT Thread thlan dik tak hian seal tha tak, rei tak awm thei siamnaah danglamna zawng zawng a siam thei tih hre reng ang che.

Tawpna

SAE leh NPT thread nuances te kan explore tawh a. Recap tur chuan SAE thread hi hydraulic system atana siam a ni a, straight thread a awm a, sealing atan O-ring a awm bawk. SAE Male Connector leh SAE Female Connector te hian leak awm lohna connection a awm theih nan hmun pawimawh tak an chang a ni. A lehlamah chuan NPT thread, emaw National Pipe Tapered thread te hian tapered design an nei a, chu chuan fit tightness hmangin seal a siam a, PTFE tape emaw sealant compound emaw hmangin an tichak fo thin.

A danglamna hriatthiam hi a pawimawh hle. SAE Thread Types, SAE J514 tube fittings-a hmuh theih Straight Thread O-Ring Boss ang chi te hian O-ring an rinchhan a, seal nghet tak an siam thei a ni. Chumi danglamna chu NPT thread, ANSI/ASME B1.20.1 nena inmil chuan thread inkara inthlak danglamna hmangin seal a siam a ni.

Thread type dik thlan chu sawi uar theih a ni lo. Mismatch hian leak a thlen thei a, system a tichhe thei a, downtime a tipung thei bawk. Entirnan, SAE fittings te chu hydraulic system-a i connect dawnin SAE J518, DIN 20066, ISO/DIS 6162, emaw JIS B 8363 ang chi standard te nen a inmil theih nan enfiah thin ang che.

Hydraulic fittings lamah chuan SAE Thread Type hi O-Ring Boss connection nen a inzawm fo a, NPT thread hi plumbing application tlangpuiah chuan a awm fo thung. SAE standard atana siam system-a NPT adapter i hman hian sealing mechanism hrang hrangte ngaihtuah la. O-ring hian SAE system-ah chuan watertight connection mumal tak a pe a, NPT system-a tapered design erawh chuan leak-free connection neih theih nan thread engagement uluk tak a mamawh thung.



Thutawp atan chuan, i connection-te integrity—threaded pipe emaw, pipe fittings emaw, hydraulic fittings emaw pawh ni se—SAE Thread Type emaw NPT Thread emaw hriat chian leh hman diknaah a innghat a ni. I duhthlanna kaihruai turin industry standard, a sawi tawh ang khan en fo ang che. Thread type dik tak hian secure fit a tichiang mai bakah i system pumpui efficiency leh safety a vawng reng tih hre reng ang che.
