ISO 15171 compliant. Leak-free pressure measurement, fluid sampling, and circuit ventilation up to 630 bar. Configurable thread sizes, seal materials, and body metals.

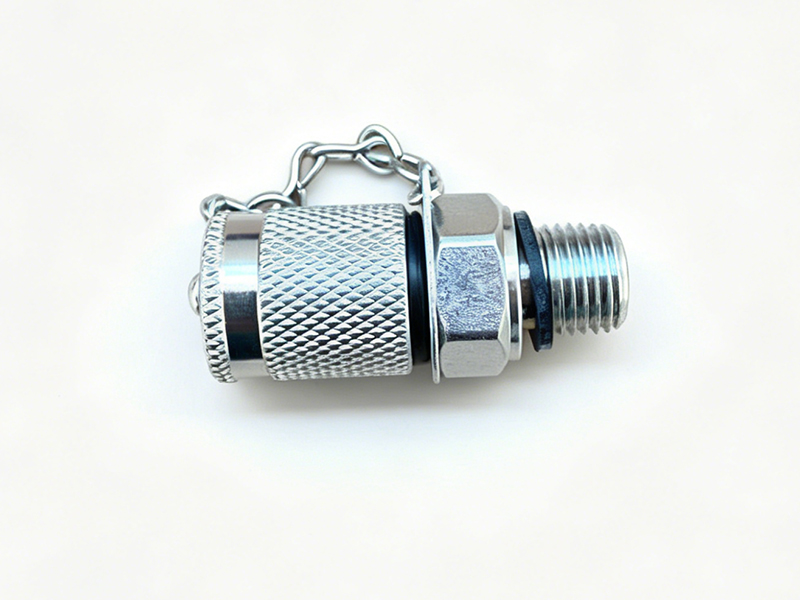

What Is a Hydraulic Test Coupling?
A hydraulic test coupling (also called a diagnostic coupling or test point) is a compact fitting installed directly on a hydraulic circuit. It provides a standardized access port where you can connect a pressure gauge, test hose, or sample probe in seconds — no shutdown, no line break, no fluid loss.
The internal poppet-style seal stays closed until a mating test hose end pushes it open. This leak-free design means zero spillage during both connection and disconnection, even at pressures approaching the rated limit.
ISO 15171: These test couplings comply with ISO 15171-1 (dimensions and performance requirements for screw-in test points) and ISO 15171-2 (mating test hose end fittings). This international standard ensures dimensional interchangeability across manufacturers — the same test hose fits couplings from Parker, Stauff, Hydac, Minimess, and others.
Common use cases:
Commissioning checks — Verify system pressure during startup
Routine monitoring — Quick spot-checks without interrupting production
Fluid sampling — Extract oil samples for contamination analysis
System venting — Release trapped air after maintenance
Troubleshooting — Diagnose pressure anomalies in real time
NBR (-20 to +100 °C), FKM (-20 to +200 °C), EPDM (-40 to +150 °C), Low-temp (-50 °C)
Surface Treatments
Zinc-plated, Zinc Nickel CrVI-free
Media Compatibility
Hydraulic oils, mineral oil-based fluids (gas — confirm compatibility)
Standard
ISO 15171-1 / ISO 15171-2

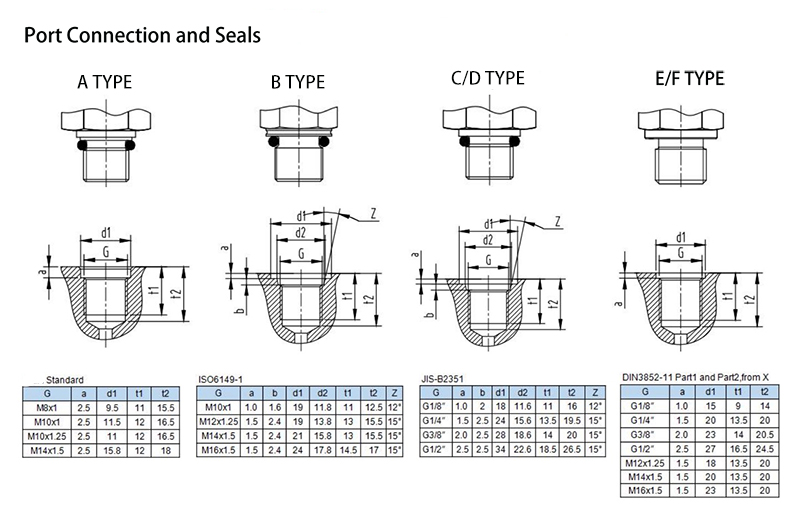

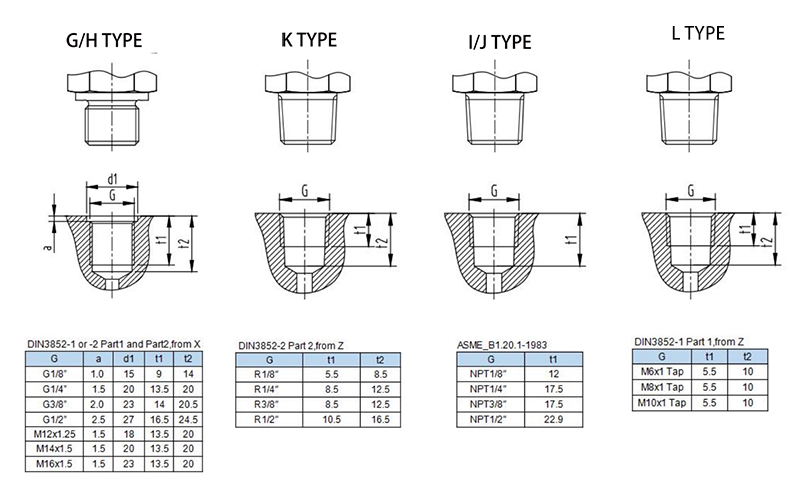

Port Connection and Seal Mechanism
This section addresses the two most critical engineering decisions: how the coupling connects to your circuit, and what keeps it sealed under pressure.
Thread Size Options
The coupling screws directly into a tapped port on your hydraulic manifold, cylinder, or valve block. Match the thread to the existing port — mismatched threads cause leaks and damage both parts.
Thread
Type
Nominal Size
Typical Application
M10x1
Metric fine
10 mm
Compact valves, small cylinders, pilot circuits
M12x1.5
Metric coarse
12 mm
Mid-size proportional valves
M14x1.5
Metric fine
14 mm
Directional control valves
M16x2
Metric fine
16 mm
Standard industrial hydraulics — most common
M18x1.5
Metric fine
18 mm
Large-bore cylinders, main pumps
G1/4
BSP parallel
~13 mm
British-standard systems, legacy equipment
G3/8
BSP parallel
~17 mm
Medium-flow British-standard ports
G1/2
BSP parallel
~21 mm
High-flow British-standard systems
M16x2 is the single most frequently ordered size for general industrial applications. G1/4 and G1/2 dominate in regions where BSP threading is the norm (UK, Commonwealth, older European plants).

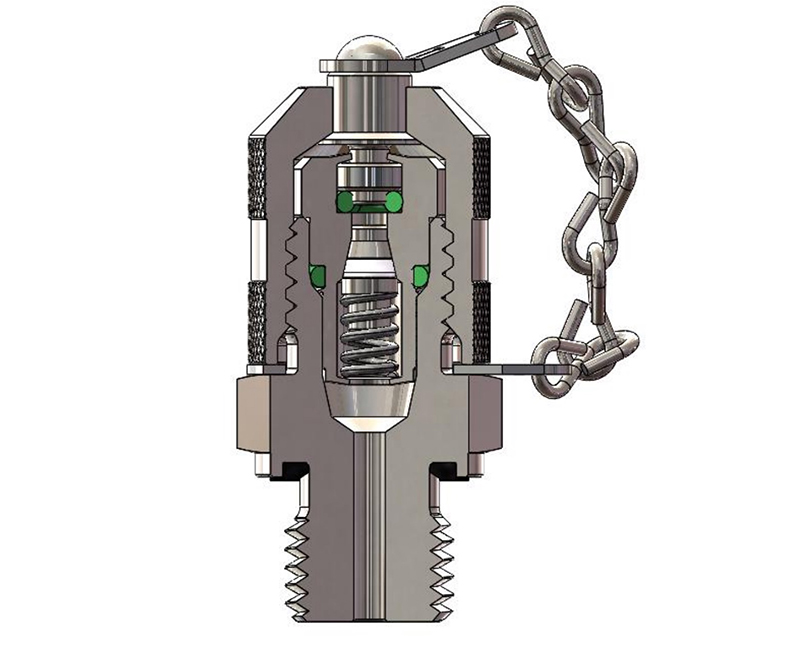

Internal Seal Mechanism
The leak-free operation relies on a precision-machined poppet valve inside the coupling body:
At rest — A spring-loaded poppet seals against an internal seat. System pressure holds the poppet closed tighter.
Connecting — The mating test hose end (per ISO 15171-2) depresses the poppet, opening the passage to your gauge or sampler. The seal between hose end and coupling bore prevents external leakage.
Disconnecting — When the hose end withdraws, spring force closes the poppet instantly. Residual oil in the port stays inside — zero drip.
The seal compound (NBR, FKM, EPDM, or low-temp) forms the primary barrier between poppet and seat, plus the secondary barrier between the hose end taper and the coupling's internal bore. Selecting the right seal material for your fluid temperature and chemistry is covered in the selection guide below.
Why Choose These 630 Bar Test Couplings?
630 Bar — Tested Limit, Not Marketing
630 bar (9,135 psi) is the certified working pressure per ISO 15171-1 testing protocols. Each configuration undergoes cyclic pressure testing and proof-load verification before release to stock.
Four Seal Materials, Four Operating Windows
Different hydraulic systems run different fluids at different temperatures. One seal compound cannot cover all conditions:
NBR (code N) — Mineral-oil hydraulic fluids up to 100 °C. Cost-effective default for ~70% of industrial applications.
FKM (code F) — High temperatures up to 200 °C. Also handles phosphate-ester fire-resistant fluids. Good chemical resistance against aggressive additives.
EPDM (code E) — Steam, brake fluid (DOT 3/4), water-glycol, and polar synthetic fluids. Temperature range extends down to -40 °C. Not compatible with petroleum oils.
Low-Temp (code L) — Cryogenic-grade compound rated to -50 °C. Used in arctic mobile equipment, cold-storage hydraulic systems, and LNG auxiliary circuits. Available on request.
Picking the wrong seal is the #1 cause of early failure. A $0.30 savings on seal selection can cost thousands in unplanned downtime.
Corrosion Resistance That Matches the Environment
Zinc-plated (code Z) — Adequate for heated indoor spaces with controlled humidity. Not recommended for outdoor exposure.
Zinc Nickel CrVI-free (code N) — 500+ hours salt-spray resistance per ASTM B117. Fully REACH compliant. Default choice for European shipments and outdoor installations.
Stainless Steel 304 (code F) — Good general corrosion resistance. Suitable for food-processing adjacent zones and mildly corrosive atmospheres.
Stainless Steel 316L (code L) — Molybdenum-enhanced. Best for marine environments, coastal sites, chemical washdown areas, and anywhere chlorides or salts are present.
Protection Caps That Stay With the Unit
Cap Type
Code
Best For
Round Cap with Chain
R
General use — chain prevents loss
Hexagonal Cap with Chain
H
Wrench-tightenable, high-vibration zones
Universal Cap (vent + protect)
E
Venting and protection combined
Plastic Cap
P
Cost-sensitive, clean-room or indoor-only
Anti-Vibration O-Ring Option
Equipment running continuous vibration (piston pumps >5 Hz, diesel compressors, tracked excavators) can gradually loosen threaded fittings over hundreds of operating hours. Adding the anti-vibration O-ring (code 1) creates a secondary mechanical lock. Cost increase is minimal — field reliability gain is significant.
Part Number Configuration
Each test coupling is built to a six-segment code:
Surface – Seal – Cap – Series – O-ring – Marking
Z – N – R – TC – 0 – 0 │ │ │ │ │ └─ 0 = None / XX = Custom trademark │ │ │ │ └───── 0 = Standard / 1 = Anti-vibration O-ring │ │ │ └────────── TC = Test Coupling series │ │ └─────────────────── W = None / H = Hex / R = Round / E = Universal / P = Plastic │ └──────────────────────── N = NBR / F = FKM / E = EPDM / L = Low-temp └──────────────────────────── Z = Zinc / N = Zn-Ni / C = Color Zn / e = Black / F = 304SS / L = 316LSS
Configuration Examples
Part Number
Breakdown
Z-N-R-TC-0-0
Zinc body, NBR seal, Round chain cap, standard O-ring, no custom mark
Zn-Ni CrVI-free body, EPDM seal, Universal cap, standard O-ring
How to Select Your Test Coupling
Identify the port thread on your hydraulic component. Check the drawing or measure with a thread gauge. Most common: M16x2, M10x1, G1/4, or G1/2.
Confirm your peak system pressure. If it exceeds 630 bar, step up to a higher-rated fitting class.
Match the seal to your fluid and temperature. Mineral oil under 80 °C → NBR. Above 100 °C or fire-resistant fluid → FKM. Brake fluid, steam, or polar synthetics → EPDM. Below -40 °C → request low-temp.
Select body metal based on environment. Dry indoor → zinc-plated steel. Outdoor/marine/washdown → 316L SS. European export → Zn-Ni CrVI-free as baseline.
Add functional options. Chain-linked cap for field service. Anti-vibration O-ring for rotating or reciprocating machinery. Universal cap if venting capability is needed.
Specify quantity and lead-time requirement. Standard configurations ship faster than custom-marked batches.
If you're unsure about any parameter, send us a photo of the existing port and a note about your operating conditions — we'll recommend the correct configuration.
Installation Guide
Prepare the port. Clean the threaded hole with solvent. Remove debris, old thread sealant, and burrs. A dirty port causes installation damage and post-install leaks.
Apply thread sealant correctly. Use PTFE tape (2–3 wraps, direction matters) or anaerobic liquid sealant rated for 630 bar. Do not over-apply — excess sealant can enter the hydraulic circuit and contaminate the oil.
Torque to specification. Hand-tighten first, then apply torque using the values below. Never use impact wrenches on test couplings — they deform the internal poppet seat.
Thread
Recommended Torque
Tool
M10x1
15–20 N·m
8 mm wrench
M16x2
55–75 N·m
14 mm wrench
G1/4
15–25 N·m
13/16" wrench
G1/2
60–85 N·m
1¼" wrench
Attach the protection cap. Keep the cap screwed on whenever the test point is not in use. Dust and grit on the internal poppet surface cause scoring and eventual leakage.
Pressure-test before commissioning. Bring the system to working pressure and check the coupling body-to-port joint for weeping. Fix now rather than during production.
The standard ISO 15171 design is optimized for hydraulic oils and mineral-based fluids. For compressed air or other gaseous media, the internal sealing geometry may not provide sufficient leak-free performance due to the lower viscosity of gases. If your application involves gas service, specify this at the time of order so we can evaluate alternative seal compounds and verify body material compatibility for your specific operating pressure.
What is the difference between 304 and 316L stainless steel for test couplings?
The key difference is molybdenum content. 304 SS has approximately 18% chromium and 8% nickel, which provides good general corrosion resistance in dry indoor environments at a lower cost. 316L SS adds 2–3% molybdenum, which significantly improves resistance to chloride-induced pitting and crevice corrosion. For marine environments, coastal installations, chemical washdown areas, or any application exposed to salt spray or de-icing salts, 316L is the recommended choice despite the higher material cost.
Can I get custom logo engraving on my test couplings?
Yes. Use marking code XX in the part number string and submit your vector logo file (AI/EPS/PDF format preferred). The logo is laser-engraved on each unit before shipment. Minimum batch size for custom marking varies by total order volume — typically available starting at 50 units per SKU.
Do I need the anti-vibration O-ring on every test coupling?
Not always. The anti-vibration O-ring (code 1 in the part number) adds a secondary retention feature between the fitting body and the threaded insert. It is strongly recommended for equipment that experiences continuous vibration above 5 Hz — such as piston pumps, diesel compressors, mobile excavators, or vibrating conveyor systems. For static installations like laboratory test stands or stationary press machines, the standard version without the O-ring is typically adequate.
Which thread sizes are available for 630 bar test couplings?
Standard availability covers metric threads M10x1, M12x1.5, M14x1.5, M16x2, M18x1.5, and BSP parallel threads G1/4, G3/8, G1/2. The most commonly specified sizes are M10x1 (compact circuits), M16x2 (standard industrial hydraulics), and G1/2 (high-flow systems). Custom threads outside these ranges can be manufactured subject to minimum order quantities.
How do I choose the right seal material for my hydraulic system?
Start with your actual fluid type and maximum operating temperature. NBR works for mineral oil-based hydraulic fluids up to 100 °C — this covers roughly 70% of industrial applications and is the lowest-cost option. Switch to FKM if your system runs above 100 °C or uses phosphate ester (fire-resistant) fluids. Choose EPDM if you work with brake fluid, steam, water-glycol mixtures, or polar synthetics. For arctic or cryogenic environments below -40 °C, request the low-temp compound. Running the wrong seal in a high-temperature system is the leading cause of premature leakage.
Is Zinc Nickel CrVI-free plating required for European markets?
Not strictly required by law for all products, but highly recommended. EU REACH Regulation (EC) No 1907/2006 restricts hexavalent chromium in surface finishes. Standard zinc plating often contains trace Cr(VI) passivation layers. Zinc Nickel CrVI-free plating eliminates this compliance risk entirely while delivering 500+ hours of salt-spray resistance per ASTM B117 — significantly better than conventional zinc. For any product shipped into the EU, CrVI-free is the default recommendation.
What is ISO 15171 and why does it matter for test couplings?
ISO 15171 is the international standard specifically covering hydraulic test couplings for use on fluid power systems. Part 1 (ISO 15171-1) defines dimensions, performance requirements, and test methods for screw-in test couplings. Part 2 (ISO 15171-2) covers the mating test hose end fittings. Compliance means the product meets globally recognized dimensional interchangeability and pressure rating standards — important when your test equipment needs to interface with components from different manufacturers. Products meeting ISO 15171 are sometimes referred to in the industry as "diagnostic coupling" or "minimess" style fittings.
